EEA-FC1C150

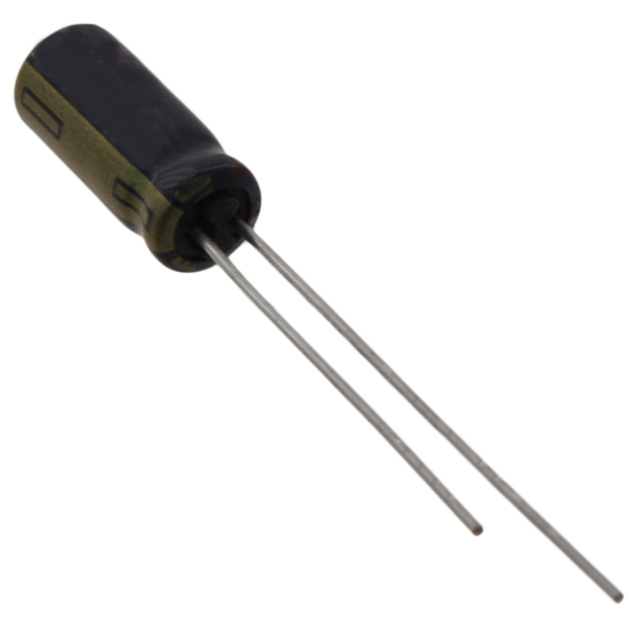

lmages are for reference only.EEA-FC1C150
CAP ALUM 15UF 20% 16V RADIAL TH
DatasheetRadial, Can
19,197 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
15 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
EEA-FC1C150
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | FC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 42.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EEA-FC1 |
| Impedance | 2 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | EEA-FC1C150B | EEA-FC1C150H | EEA-FC1C270 | EEA-FC1C270B |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 15UF 20% 16V RADIAL TH | CAP ALUM 15UF 20% 16V RADIAL TH | CAP ALUM 27UF 20% 16V RADIAL TH | CAP ALUM 27UF 20% 16V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Bulk | Tape & Box (TB) |
