EEA-FC1E100
lmages are for reference only.EEA-FC1E100
CAP ALUM 10UF 20% 25V RADIAL TH
DatasheetRadial, Can
68,261 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
EEA-FC1E100
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | FC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 42.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 65 mA @ 100 kHz |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EEA-FC1 |
| Impedance | 2 Ohms |
| Product Attribute |  |
 |
 |
 |

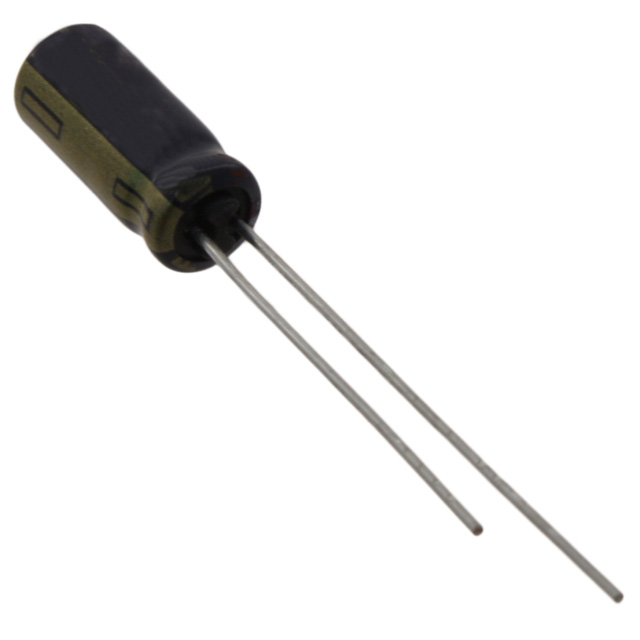

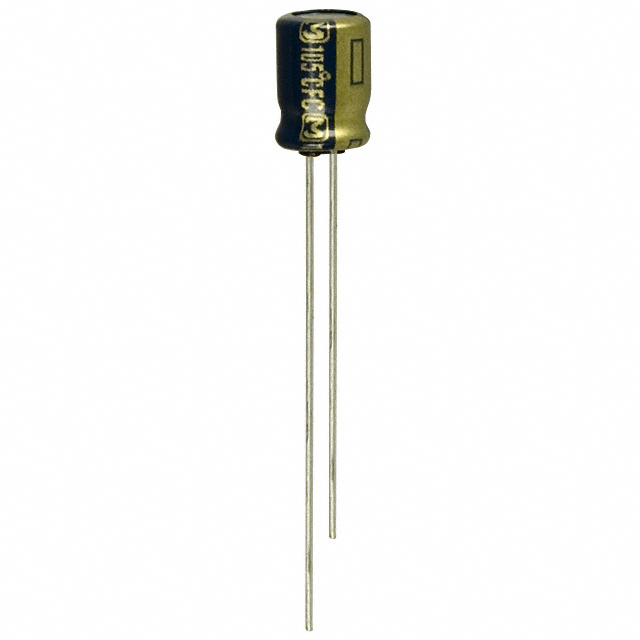

| Part Number | EEA-FC1E100B | EEA-FC1E100H | EEA-FC1E220 | EEA-FC1E220B |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 10UF 20% 25V RADIAL TH | CAP ALUM 10UF 20% 25V RADIAL TH | CAP ALUM 22UF 20% 25V RADIAL TH | CAP ALUM 22UF 20% 25V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
