EEF-FD0D680R

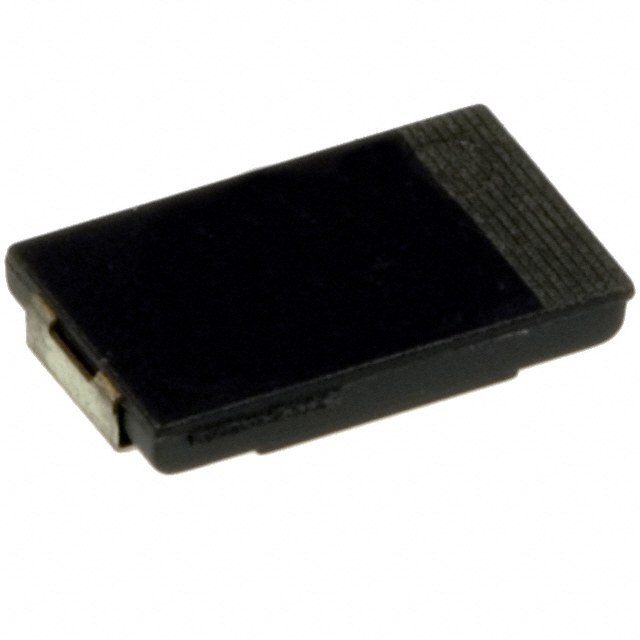

lmages are for reference only.EEF-FD0D680R
CAP ALUM POLY 68UF 20% 2V SMD
Datasheet2917 (7343 Metric)
13,834 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µF 2 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 28mOhm 1000 Hrs @ 105°C
EEF-FD0D680R
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | SP-Cap FD |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Base Product Number | EEF-FD |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
|
| Part Number | EEF-FD0D680CR | EEF-FD0E560R | EEF-FD0G390R | EEF-FD0G470CR |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP ALUM POLY 68UF 20% 2V SMD | CAP ALUM POLY 56UF 20% 2.5V SMD | CAP ALUM POLY 39UF 20% 4V SMD | CAP ALUM POLY 47UF 20% 4V SMD |
| Series | SP-Cap FD | SP-Cap FD | SP-Cap FD | SP-Cap FD |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
