EEH-AZC1H101B

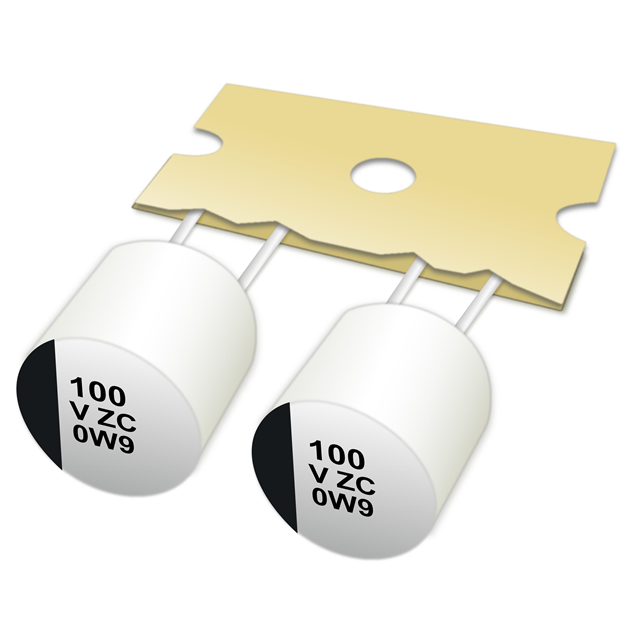

lmages are for reference only.EEH-AZC1H101B
CAP ALUM HYBRID 100UF 20% 50V TH
DatasheetRadial, Can
78,577 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 50 V Aluminum - Polymer Capacitors Radial, Can 28mOhm 4000 Hrs @ 125°C
EEH-AZC1H101B
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ZC |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 28mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 240 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EEH-AZC |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EEH-AZC1H121B | EEH-AZC1E151B | EEH-AZC1E221B | EEH-AZC1E331B |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM HYBRID 120UF 20% 50V TH | CAP ALUM HYBRID 150UF 20% 25V TH | CAP ALUM HYBRID 220UF 20% 25V TH | CAP ALUM HYBRID 330UF 20% 25V TH |
| Series | ZC | ZC | ZC | ZC |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
