EET-HD2S221JJ
lmages are for reference only.EET-HD2S221JJ
CAP ALUM 220UF 20% 420V SNAP TH
DatasheetRadial, Can - Snap-In
10,893 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µF 420 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
EET-HD2S221JJ
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | TS-HD |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.05 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.47 A @ 10 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | EET-HD |
| Impedance | - |
| Product Attribute | |
 |
|
|

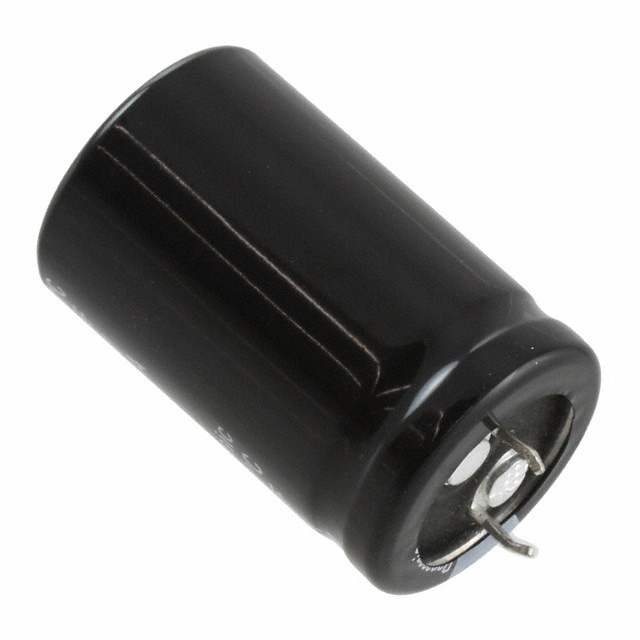

| Part Number | EET-HD2S221HJ | EET-HD2G121HJ | EET-HD2G181JJ | EET-HD2G221HJ |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||
| Description | CAP ALUM 220UF 20% 420V SNAP TH | CAP ALUM 120UF 20% 400V SNAP TH | CAP ALUM 180UF 20% 400V SNAP TH | CAP ALUM 220UF 20% 400V SNAP TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
