EFDKA1CJ256E194DH

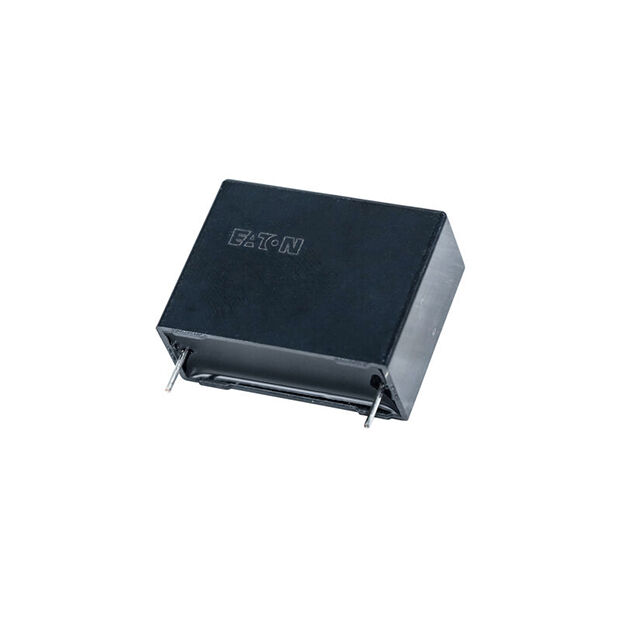

lmages are for reference only.EFDKA1CJ256E194DH
CAP EFDKA 1200VDC 25UF J 4LEADS
DatasheetRadial - 4 Leads
25,760 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial - 4 Leads
EFDKA1CJ256E194DH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKA |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 25 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 1.654" L x 1.772" W (42.00mm x 45.00mm) |
| Height - Seated (Max) | 2.402" (61.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 4.3 mOhms |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | EFDKA1CJ256E194DH | EFDKA1CJ256F034DH | EFDKA1CJ105D032LH | EFDKA1CJ106E154BH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ||||
| Description | CAP EFDKA 1200VDC 25UF J 4LEADS | CAP EFDKA 1200VDC 25UF J 4LEADS | CAP EFDKA 1200VDC 1UF J 2LEADS | CAP EFDKA 1200VDC 10UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
