EFDKA1CK305E072LH

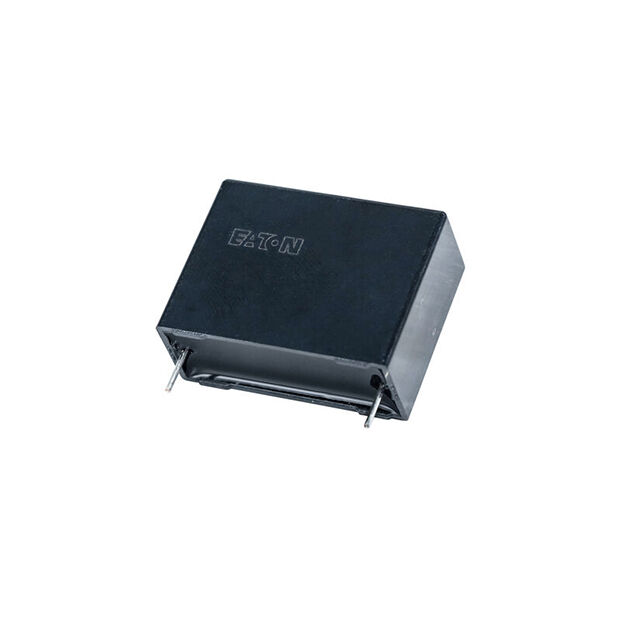

lmages are for reference only.EFDKA1CK305E072LH
CAP FILM 3UF 10% 1200VDC RAD
DatasheetRadial
55,727 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial
EFDKA1CK305E072LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.654" L x 0.669" W (42.00mm x 17.00mm) |
| Height - Seated (Max) | 1.220" (31.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 35 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFDKA1CK305D102LH | EFDKA1CJ105D032LH | EFDKA1CJ106E154BH | EFDKA1CJ126E164DH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | |||
| Description | CAP FILM 3UF 10% 1200VDC RAD | CAP EFDKA 1200VDC 1UF J 2LEADS | CAP EFDKA 1200VDC 10UF J 4LEADS | CAP EFDKA 1200VDC 12UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
