EFDKA55K106D122LH
lmages are for reference only.EFDKA55K106D122LH
CAP FILM 10UF 10% 550VDC RAD
DatasheetRadial
73,215 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µF Film Capacitor 550V Polypropylene (PP), Metallized Radial
EFDKA55K106D122LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 550V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.709" W (32.00mm x 18.00mm) |
| Height - Seated (Max) | 1.331" (33.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 10.5 mOhms |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |

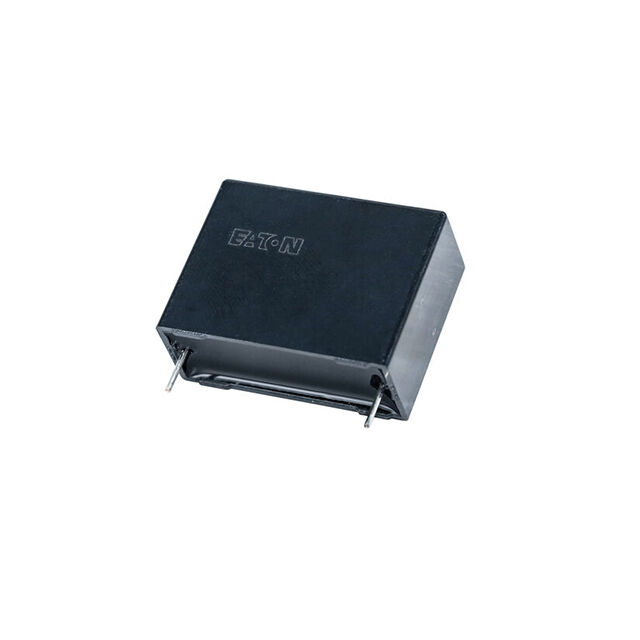

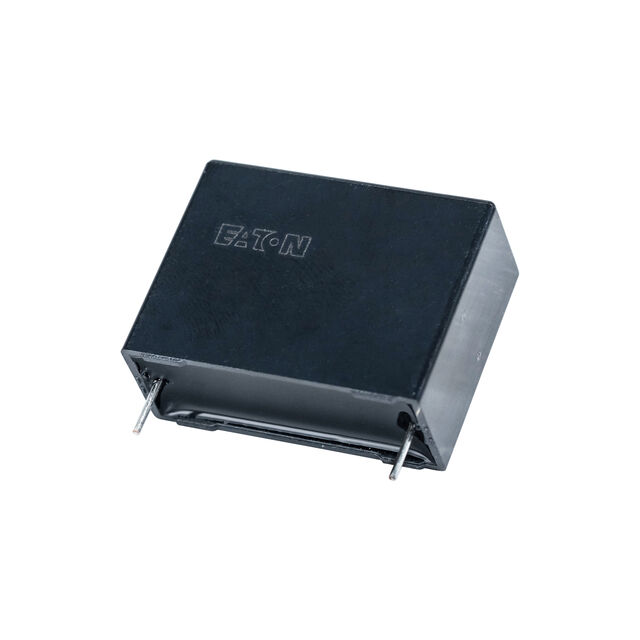

| Part Number | EFDKA55J106D122LH | EFDKA55J106D122LH | EFDKA55J107F034DH | EFDKA55J117E194DH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ||||
| Description | CAP EFDKA 550VDC 10UF J 2LEADS | CAP EFDKA 550VDC 10UF J 2LEADS | CAP EFDKA 550VDC 100UF J 4LEADS | CAP EFDKA 550VDC 110UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
