EFDKA80J146D132LH

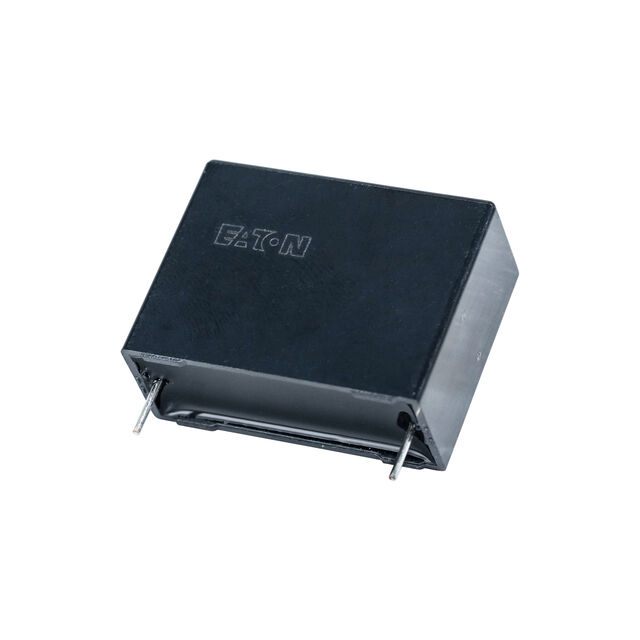

lmages are for reference only.EFDKA80J146D132LH
CAP EFDKA 800VDC 14UF J 2LEADS
DatasheetRadial
72,016 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial
EFDKA80J146D132LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKA |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 14 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.488" (37.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 9.5 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFDKA80J146D134BH | EFDKA80J146E102LH | EFDKA80J106D132LH | EFDKA80J106D134BH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ||||
| Description | CAP EFDKA 800VDC 14UF J 4LEADS | CAP EFDKA 800VDC 14UF J 2LEADS | CAP EFDKA 800VDC 10UF J 2LEADS | CAP EFDKA 800VDC 10UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
