EFDKA80J756F044DH
lmages are for reference only.EFDKA80J756F044DH
CAP EFDKA 800VDC 75UF J 4LEADS
DatasheetRadial - 4 Leads
10,185 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
75 µF Film Capacitor 800V Polypropylene (PP), Metallized Radial - 4 Leads
EFDKA80J756F044DH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKA |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 75 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 800V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial - 4 Leads |
| Size / Dimension | 2.264" L x 1.772" W (57.50mm x 45.00mm) |
| Height - Seated (Max) | 2.205" (56.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 4.3 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

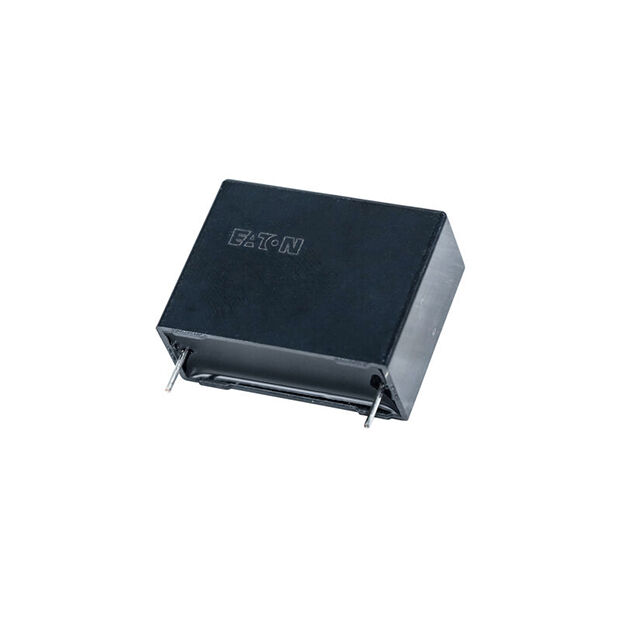

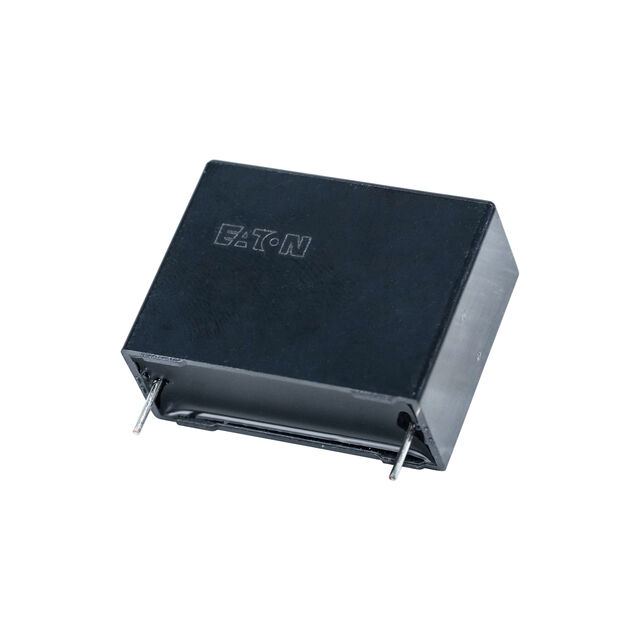

| Part Number | EFDKA80J106D132LH | EFDKA80J106D134BH | EFDKA80J106E102LH | EFDKA80J107F064DH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ||||
| Description | CAP EFDKA 800VDC 10UF J 2LEADS | CAP EFDKA 800VDC 10UF J 4LEADS | CAP EFDKA 800VDC 10UF J 2LEADS | CAP EFDKA 800VDC 100UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
