EFDKS1CK505D134BH
lmages are for reference only.EFDKS1CK505D134BH
CAP FILM 5UF 10% 1200VDC RAD
DatasheetRadial
75,541 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial
EFDKS1CK505D134BH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFDKS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1200V (1.2kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
| Height - Seated (Max) | 1.488" (37.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | DC Link, DC Filtering |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

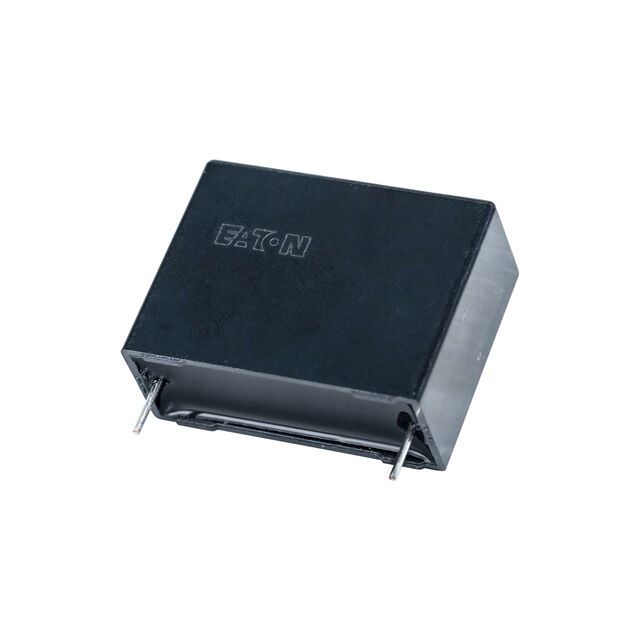

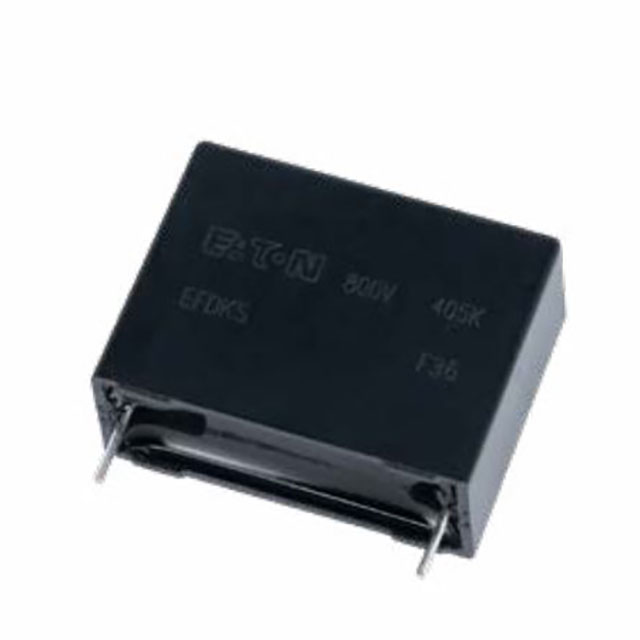

| Part Number | EFDKS1CK505D132LH | EFDKS1CK505E102LH | EFDKS1CJ105D032LH | EFDKS1CJ106E154BH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | CAP FILM 5UF 10% 1200VDC RAD | CAP FILM 5UF 10% 1200VDC RAD | CAP EFDKS 1200VDC 1UF J 2LEADS | CAP EFDKS 1200VDC 10UF J 4LEADS |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
