EFM32JG12B500F1024GM48-C

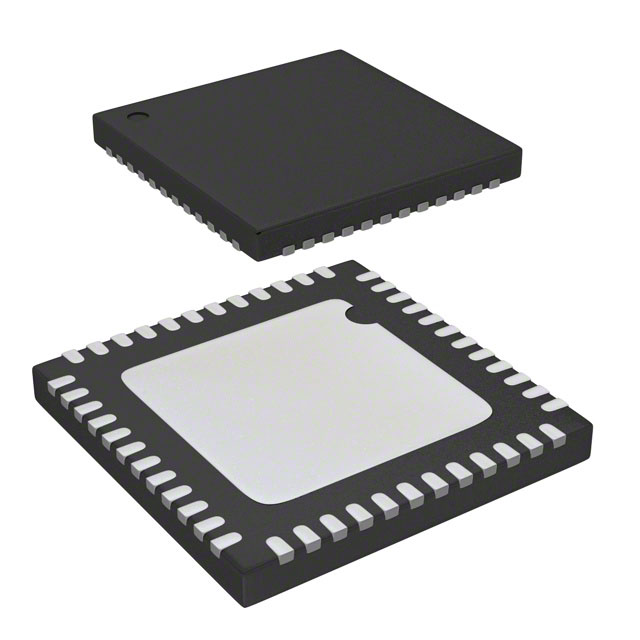

lmages are for reference only.EFM32JG12B500F1024GM48-C
IC MCU 32BIT 1MB FLASH 48QFN
Datasheet48-VFQFN Exposed Pad
78,335 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
ARM® Cortex®-M3 Jade Gecko Microcontroller IC 32-Bit Single-Core 40MHz 1MB (1M x 8) FLASH 48-QFN (7x7)
EFM32JG12B500F1024GM48-C
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Silicon Labs |
| Series | Jade Gecko |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 40MHz |
| Connectivity | I2C, IrDA, LINbus, SmartCard, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 33 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.8V |
| Data Converters | A/D - 12b SAR |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-QFN (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| Base Product Number | EFM32JG12B500 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFM32JG12B500F1024GM48-B | EFM32JG12B500F1024GM48-BR | EFM32JG12B500F1024GM48-CR | EFM32JG12B500F1024GL125-B |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC MCU 32BIT 1MB FLASH 48QFN | IC MCU 32BIT 1MB FLASH 48QFN | IC MCU 32BIT 1MB FLASH 48QFN | IC MCU 32BIT 1MB FLASH 125BGA |
| Series | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Packaging | Tray | Tape & Reel (TR) | Tape & Reel (TR) | Tray |
