EFM8SB10F2G-A-QFN20R
lmages are for reference only.EFM8SB10F2G-A-QFN20R
IC MCU 8BIT 2KB FLASH 20QFN
Datasheet20-UFQFN Exposed Pad
57,048 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
CIP-51 8051 Sleepy Bee Microcontroller IC 8-Bit 25MHz 2KB (2K x 8) FLASH 20-QFN (3x3)
EFM8SB10F2G-A-QFN20R
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Silicon Labs |
| Series | Sleepy Bee |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Core Processor | CIP-51 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | I2C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 9x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN (3x3) |
| Package / Case | 20-UFQFN Exposed Pad |
| Base Product Number | EFM8SB10 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

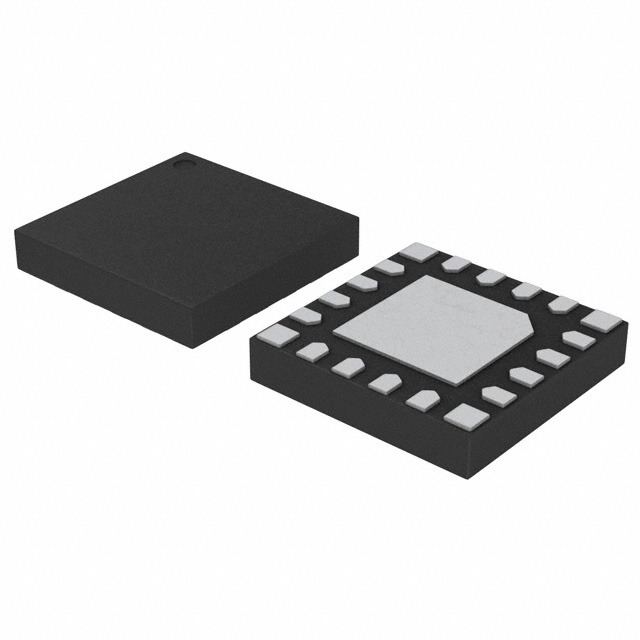

| Part Number | EFM8SB10F2G-A-QFN20 | EFM8SB10F4G-A-QFN20 | EFM8SB10F4G-A-QFN20R | EFM8SB10F8A-A-QFN20 |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 8BIT 2KB FLASH 20QFN | IC MCU 8BIT 4KB FLASH 20QFN | IC MCU 8BIT 4KB FLASH 20QFN | IC MCU 8BIT 8KB FLASH 20QFN |
| Series | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
