EFO-SS4194E5
lmages are for reference only.EFO-SS4194E5
CERAMIC RES 4.1900MHZ 21PF SMD
Datasheet3-SMD, Non-Standard
94,108 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.19 MHz Ceramic Resonator Built in Capacitor 21 pF ±0.2% -20°C ~ 80°C Surface Mount
EFO-SS4194E5
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | Panasonic Electronic Components |
| Series | EFO-SS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Ceramic |
| Frequency | 4.19 MHz |
| Frequency Stability | ±0.2% |
| Frequency Tolerance | ±0.5% |
| Features | Built in Capacitor |
| Capacitance | 21 pF |
| Impedance | - |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, Non-Standard |
| Size / Dimension | 0.177" L x 0.079" W (4.50mm x 2.00mm) |
| Height | 0.047" (1.19mm) |
| Base Product Number | EFO-SS |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFO-SS1005E5 | EFO-SS4004E5 | EFO-SS5004E5 | EFO-SS6004E5 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||

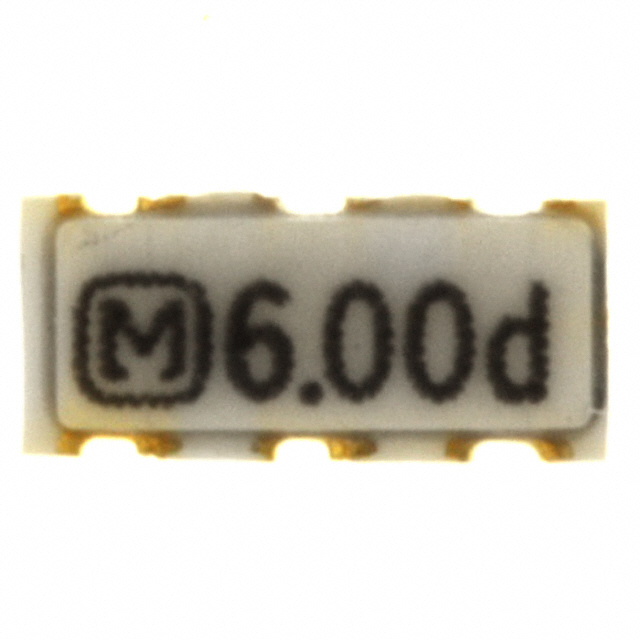

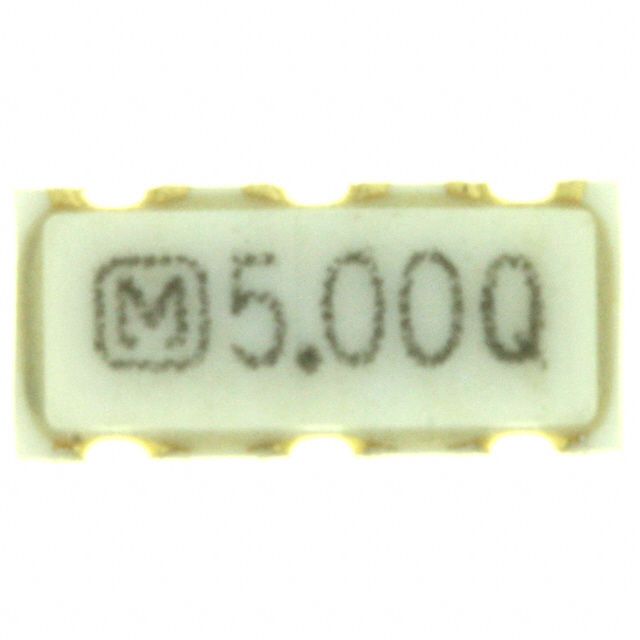

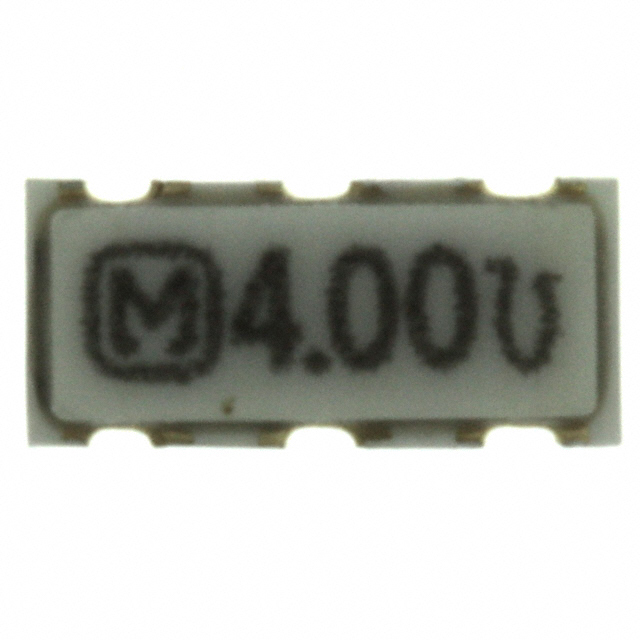

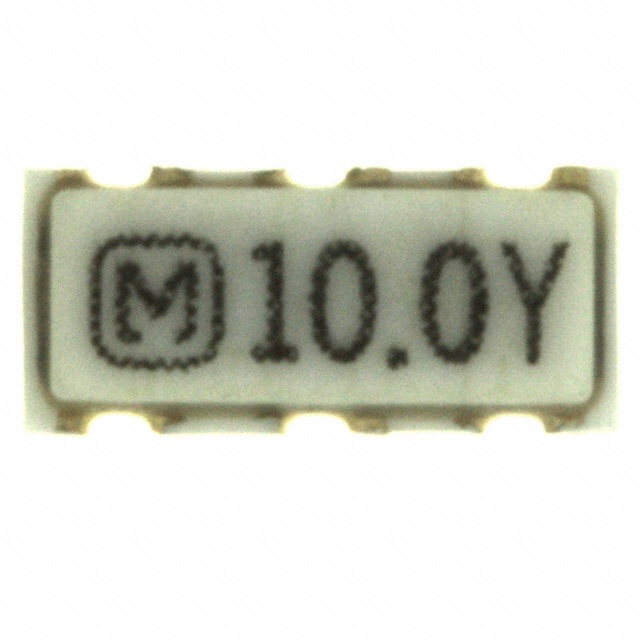

| Description | CERAMIC RES 10.0000MHZ 21PF SMD | CERAMIC RES 4.0000MHZ 21PF SMD | CERAMIC RES 5.0000MHZ 21PF SMD | CERAMIC RES 6.0000MHZ 21PF SMD |
| Series | EFO-SS | EFO-SS | EFO-SS | EFO-SS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
