EFPLA1AJ224D042LH

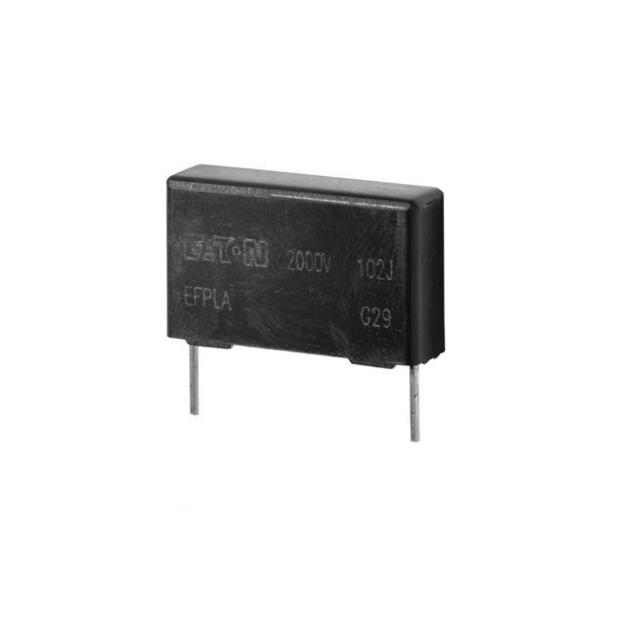

lmages are for reference only.EFPLA1AJ224D042LH
CAP FILM 0.22UF 5% 1000VDC RAD
DatasheetRadial
31,847 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.22 µF Film Capacitor 1000V (1kV) Polypropylene (PP), Metallized Radial
EFPLA1AJ224D042LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFPLA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.22 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.260" L x 0.512" W (32.00mm x 13.00mm) |
| Height - Seated (Max) | 0.898" (22.80mm) |
| Termination | PC Pins |
| Lead Spacing | 1.083" (27.50mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 14 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFPLA1AJ224E012LH | EFPLA1AJ103B012LH | EFPLA1AJ104C042LH | EFPLA1AJ104D012LH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.22UF 5% 1000VDC RAD | CAP FILM 0.01UF 5% 1000VDC RAD | CAP FILM 0.1UF 5% 1000VDC RAD | CAP FILM 0.1UF 5% 1000VDC RAD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
