EFPLA1DJ473B112LH

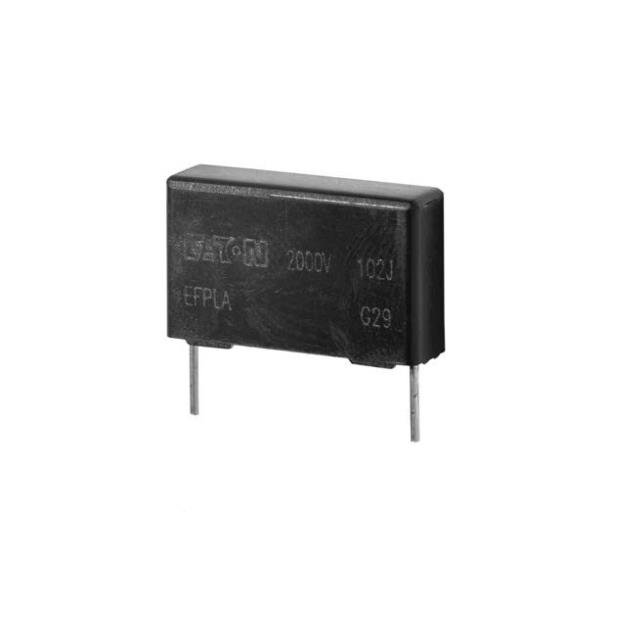

lmages are for reference only.EFPLA1DJ473B112LH
CAP FILM 0.047UF 5% 1300VDC RAD
DatasheetRadial
51,477 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.047 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial
EFPLA1DJ473B112LH
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EFPLA |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.047 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1300V (1.3kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | Automotive; High Frequency, Switching; High Pulse, DV/DT |
| Ratings | AEC-Q200 |
| Features | - |
| ESR (Equivalent Series Resistance) | 15 mOhms |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFPLA1DJ473C022LH | EFPLA1DJ103B012LH | EFPLA1DJ104C042LH | EFPLA1DJ104D012LH |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.047UF 5% 1300VDC RAD | CAP FILM 0.01UF 5% 1300VDC RAD | CAP FILM 0.1UF 5% 1300VDC RAD | CAP FILM 0.1UF 5% 1300VDC RAD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
