EFR32BG22C224F512GM32-CR

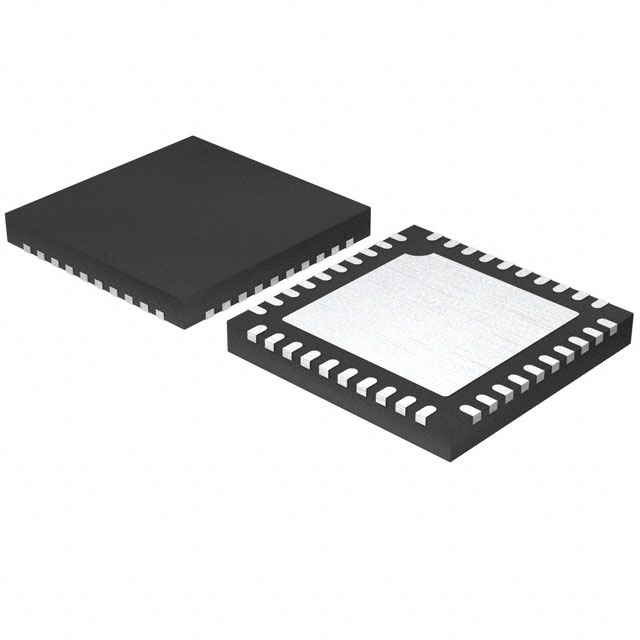

lmages are for reference only.EFR32BG22C224F512GM32-CR
IC RF TXRX+MCU BLE 32QFN
Datasheet32-VFQFN Exposed Pad
80,996 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz ~ 2.4835GHz 32-VFQFN Exposed Pad
EFR32BG22C224F512GM32-CR
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Silicon Labs |
| Series | EFR32™ Blue Gecko |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | RoHS Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.2 |
| Modulation | 2FSK, DSSS, GFSK, GMSK, MSK, OQPSK |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 6dBm |
| Sensitivity | -106.7dBm |
| Memory Size | 512kB Flash, 32kB RAM |
| Serial Interfaces | ADC, I2C, I2S, PWM, SPI, IrDA, UART, USART |
| GPIO | 18 |
| Voltage - Supply | 1.71V ~ 3.8V |
| Current - Receiving | 3.6mA ~ 4.5mA |
| Current - Transmitting | 4.1mA ~ 8.5mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (4x4) |
| Base Product Number | EFR32BG22C224 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | EFR32BG22C224F512GM32-C | EFR32BG22C224F512GM40-C | EFR32BG22C224F512GM40-CR | EFR32BG22C224F512GN32-C |
| Manufacturer | Silicon Labs | Silicon Labs | Silicon Labs | Silicon Labs |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU BLE 32QFN | IC RF TXRX+MCU BLE 40QFN | IC RF TXRX+MCU BLE 40QFN | IC RF TXRX+MCU BLE 32QFN |
| Series | EFR32™ Blue Gecko | EFR32™ Blue Gecko | EFR32™ Blue Gecko | EFR32™ Blue Gecko |
| Packaging | Tray | Tray | Tape & Reel (TR) | Tray |
