EGA10402V12AMDG
lmages are for reference only.EGA10402V12AMDG
ESD SUPPRESSORS 0402 VDC 12V CP
Datasheet0402 (1005 Metric)
81,687 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30V (Typ) Clamp Ipp Tvs Diode Surface Mount 0402
EGA10402V12AMDG
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | EGA AMDG |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 30V (Typ) |
| Current - Peak Pulse (10/1000µs) | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | DVI, HDMI, Telecom, USB |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Product Attribute |  |
 |
 |
 |

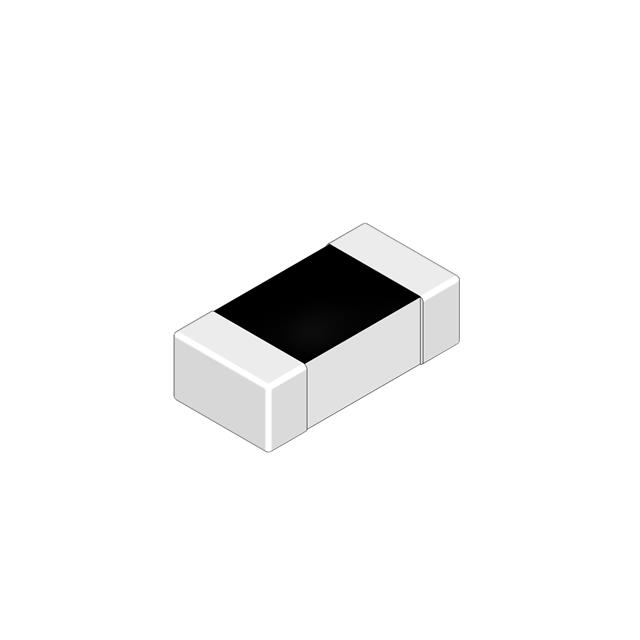

| Part Number | EGA10603V12B0DG | EGA10603V24AMDG | P4SOD6.5CAX | ESD111B1W0201E6327XTSA1 |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | WeEn Semiconductors | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | ESD SUPPRESSORS 0603 VDC 12V CP | ESD SUPPRESSORS 0603 VDC 24V CP | P4SOD6.5CA/SOD123/REEL 7" Q1/T1 | TVS DIODES SG-WLL-2 |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | WeEn Semiconductors | Infineon Technologies |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
