Product CatalogPart Number
EHHD024A0A41-SZ
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 5V 120W
Datasheet
DatasheetPackage
8-SMD Module, 1/8 Brick
In Stock
61,024 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EHHD024A0A41-SZ
EHHD024A0A41-SZ
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 24A 18V - 75V Input
Quick Inquiry
EHHD024A0A41-SZ
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Hammerhead™ EHHD024A0A (120W) |
| Packaging | Bulk |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 24A |
| Power (Watts) | 120 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | EHHD024A0A41-18HZ | EHHD024A0A41-HZ | EHHD024A0A41Z | EHHD024A0A4-HZ |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 5V 120W | DC DC CONVERTER 5V 120W | DC DC CONVERTER 5V 120W | DC DC CONVERTER 5V 120W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Bulk | Bulk | Tray | Bulk |
Customers Also Interested in
Recommended Products
EHHD006A0B41-HZ
OmniOn Power™
EHHD006A0B41-SZ
OmniOn Power™
EHHD006A0B41Z
OmniOn Power™
EHHD006A0B641-HZ
OmniOn Power™
EHHD006A0B641Z
OmniOn Power™
EHHD006A0B641Z
OmniOn Power™
EHHD006A0B841-HZ
OmniOn Power™
EHHD010A0B41-18HZ
OmniOn Power™

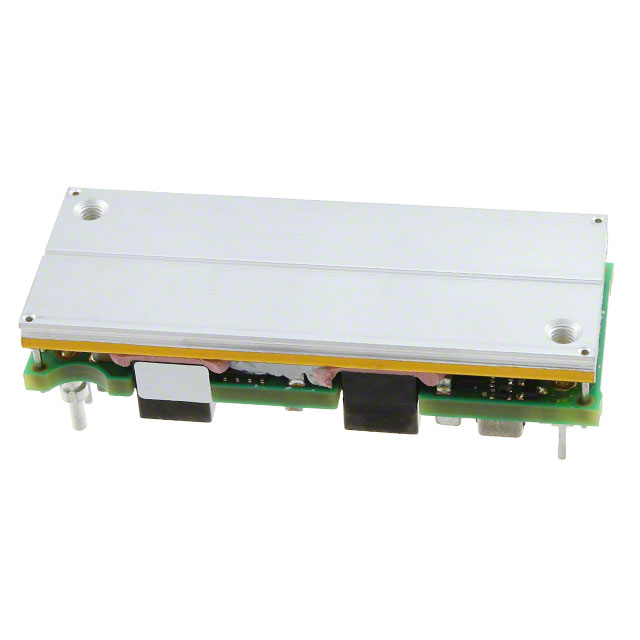

EHHD010A0B41-HZ
OmniOn Power™
EHHD010A0B41-SZ
OmniOn Power™

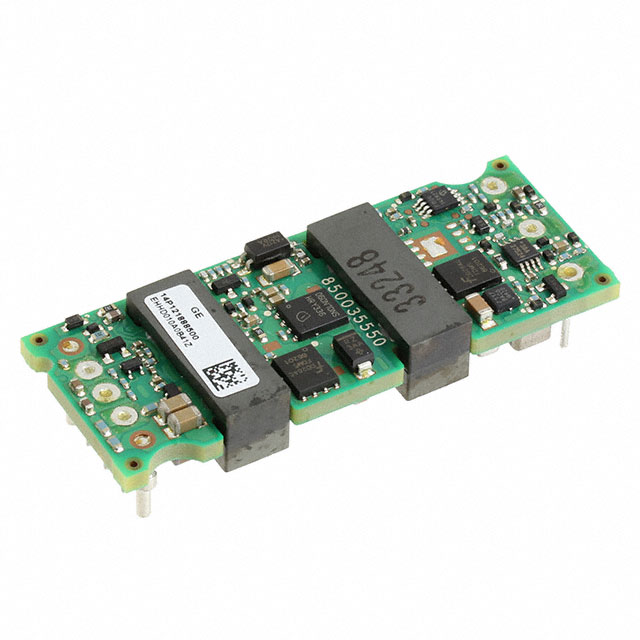

EHHD010A0B41Z
