EKMH100VSN103MP25T
lmages are for reference only.Payment Methods
Delivery Services

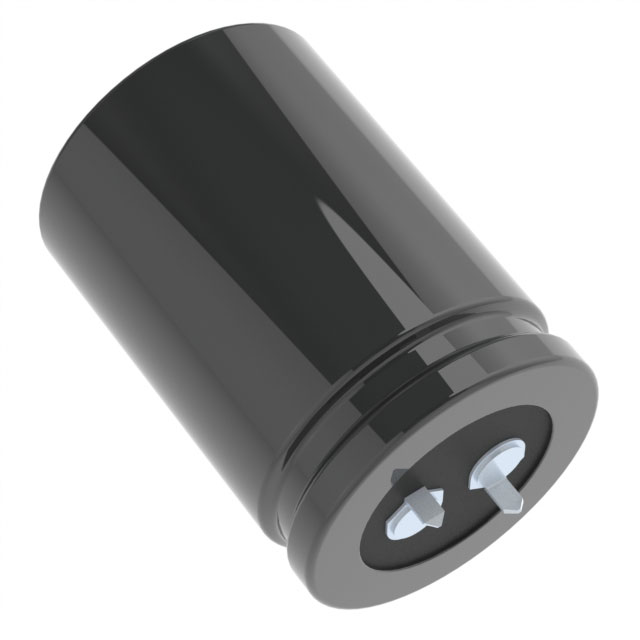

10000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 83mOhm @ 120Hz 2000 Hrs @ 105°C
EKMH100VSN103MP25T
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KMH |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 83mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.674 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
|
| Part Number | EKMH100VNN223MR25S | EKMH100VNN393MA30T | EKMH100VSN123MP30T | EKMH100VSN153MP30T |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 22000UF 20% 10V SNAP TH | CAP ALUM 39000UF 20% 10V SNAP TH | CAP ALUM 12000UF 20% 10V SNAP TH | CAP ALUM 15000UF 20% 10V SNAP TH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
