Product CatalogPart Number
EKY-160ELL822MMP1S
Manufacturer
Chemi-ConDescription
CAP ALUM 8200UF 20% 16V RADIAL
Datasheet
DatasheetPackage
Radial, Can
In Stock
15,044 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EKY-160ELL822MMP1S
EKY-160ELL822MMP1S
lmages are for reference only.Payment Methods
Delivery Services
8200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Quick Inquiry
EKY-160ELL822MMP1S
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | KY |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.587 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.22 A @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | EKY-160E |
| Impedance | 14 mOhms |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | EKY-160EC3221MF11D | EKY-160EC3331MHB5D | EKY-160EC3471MH15D | EKY-160EC5102MJ20S |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220UF 20% 16V RADIAL TH | CAP ALUM 330UF 20% 16V RADIAL TH | CAP ALUM 470UF 20% 16V RADIAL TH | CAP ALUM 1000UF 20% 16V RADIAL |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
Customers Also Interested in
Recommended Products
EKY-100EC3102MH20D
Chemi-Con
EKY-100ELL101ME11D
Chemi-Con
EKY-100ELL102MH20D
Chemi-Con

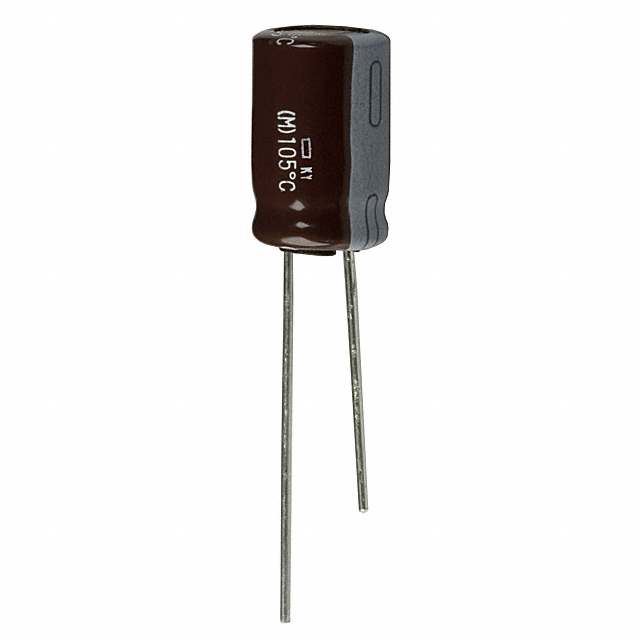

EKY-100ELL102MJ16S
Chemi-Con
EKY-100ELL103ML40S
Chemi-Con

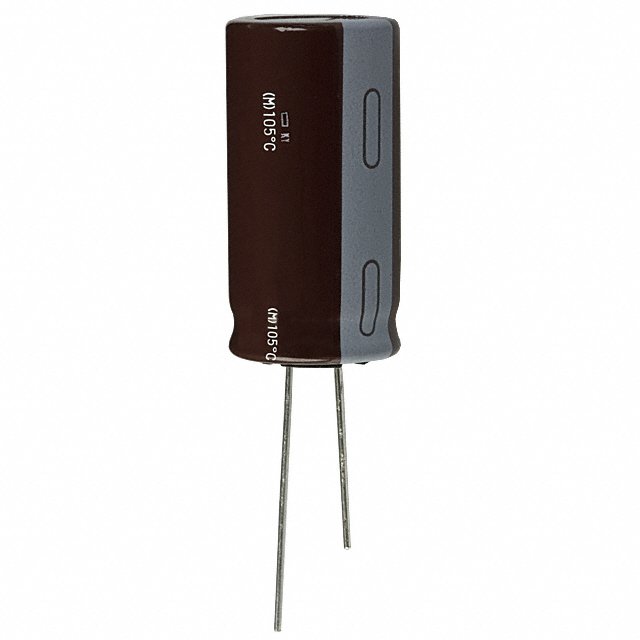

EKY-100ELL103MMP1S
