Product CatalogPart Number
EL7801ALZ-T7
Manufacturer
ElantecDescription
IC LED DRIVER CTRLR PWM 1A
Datasheet
DatasheetPackage
-
In Stock
48,622 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EL7801ALZ-T7

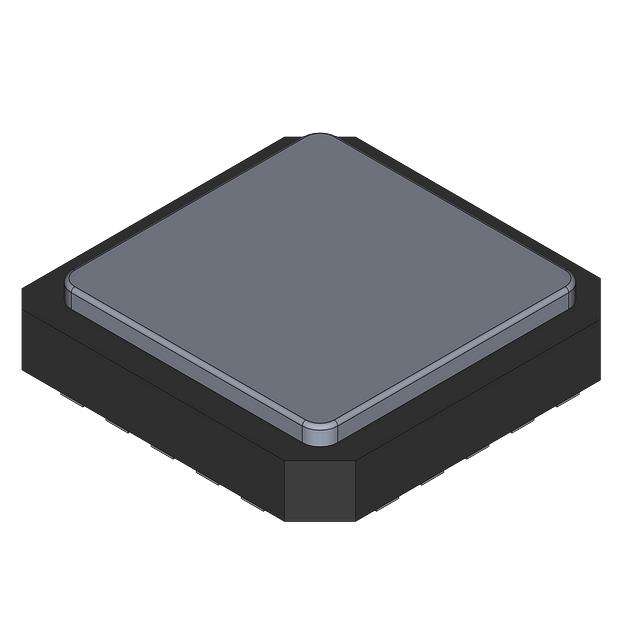

EL7801ALZ-T7
lmages are for reference only.Payment Methods
Delivery Services
LED Driver IC 1 Output DC DC Controller Buck, Boost PWM Dimming 1A
Quick Inquiry
EL7801ALZ-T7
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Elantec |
| Series | EL7801 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | DC DC Controller |
| Topology | Buck, Boost |
| Internal Switch(s) | - |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 16V |
| Voltage - Output | 0V ~ 32V |
| Current - Output / Channel | 1A |
| Frequency | 1MHz |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | - |
| Supplier Device Package | - |
| Base Product Number | EL7801 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | EL7801ALZ | EL7801ALZ-T7 | EL7513AIWTZ-T7 | EL1848IY-T7 |
| Manufacturer | Intersil | Intersil | Intersil | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | Not applicable | RoHS non-compliant |
| Description | LED DRIVER | IC LED DRIVER CTRLR PWM 1A 20QFN | SWITCHING REGULATOR, 0.5A, 1200K | IC LED DRIVER RGLTR 400MA 8MSOP |
| Series | EL7801 | EL7801 | - | - |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
