ELVH-005D-HRRJ-I-NAA4
lmages are for reference only.ELVH-005D-HRRJ-I-NAA4
SENSOR 4.93PSID 0.06"
Datasheet8-SMD, J-Lead, Dual Ports, Same Side
69,027 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) Differential Male - 0.06" (1.6mm) Tube, Dual 8-SMD, J-Lead, Dual Ports, Same Side
ELVH-005D-HRRJ-I-NAA4
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ELV |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | ELVH-005D |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) |
| Output Type | Analog Voltage |
| Output | - |
| Accuracy | ±0.25% |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.06" (1.6mm) Tube, Dual |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | J Lead |
| Maximum Pressure | 14.94PSI (103kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, J-Lead, Dual Ports, Same Side |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |

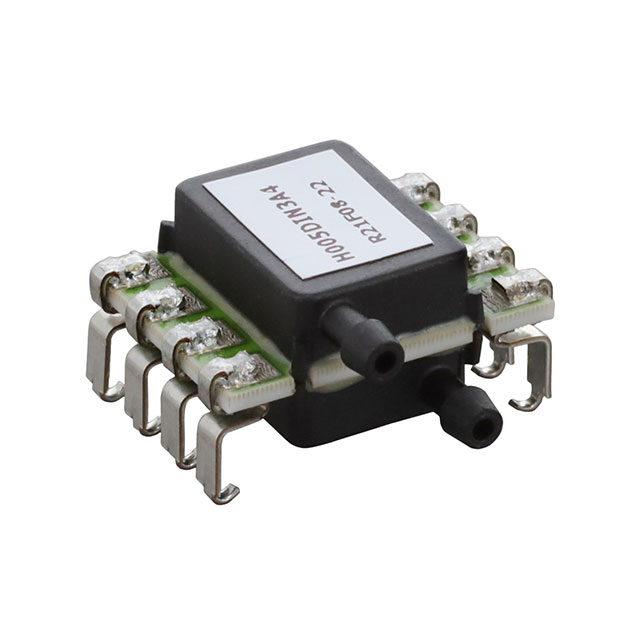

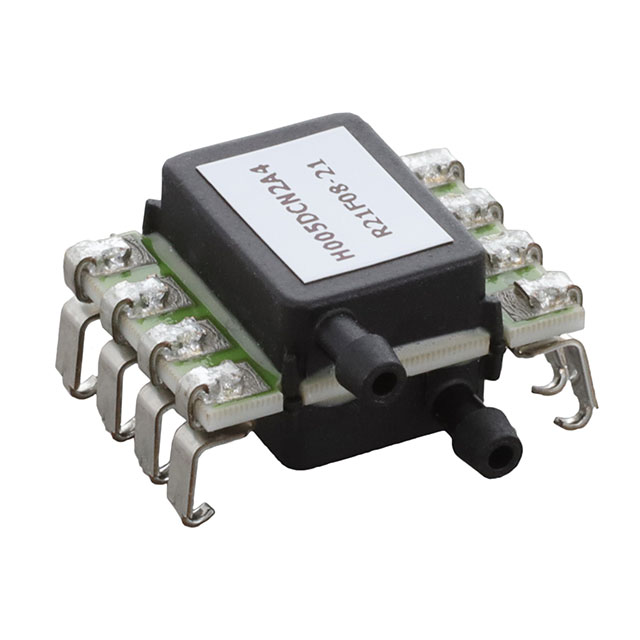

| Part Number | ELVH-005D-HRRJ-I-N3A4 | ELVH-005D-HRRJ-I-NAA4 | ELVH-005D-HRRJ-C-N2A4 | ELVH-005D-HRRJ-C-NAA4 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | SENSOR 4.93PSID 0.06" 14BIT | SENSOR 4.93PSID 0.06" | SENSOR 4.93PSID 0.06" 14BIT | SENSOR 4.93PSID 0.06" |
| Series | ELV | ELV | ELV | ELV |
| Packaging | Tray | Tray | Tray | Tray |
