ELVH-015A-HANH-C-N2A4
lmages are for reference only.ELVH-015A-HANH-C-N2A4
SENSOR 14.94PSIA 0.19" 14BIT
Datasheet4-SIP, Side Port
77,317 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.19" (4.93mm) Tube 14 b 4-SIP, Side Port
ELVH-015A-HANH-C-N2A4
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ELV |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | ELVH-015A |
| Applications | - |
| Pressure Type | Absolute |
| Operating Pressure | 15PSI (103.42kPa) |
| Output Type | I2C |
| Output | 14 b |
| Accuracy | ±0.25% |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 14.94PSI (103kPa) |
| Operating Temperature | 0°C ~ 50°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP, Side Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

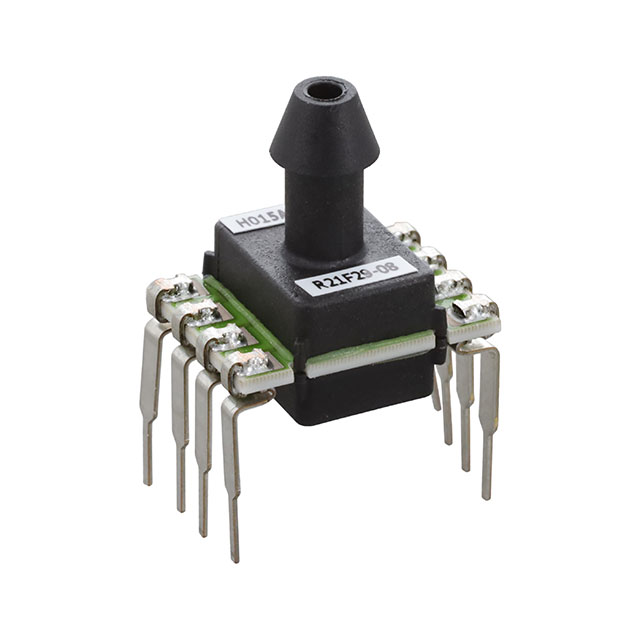

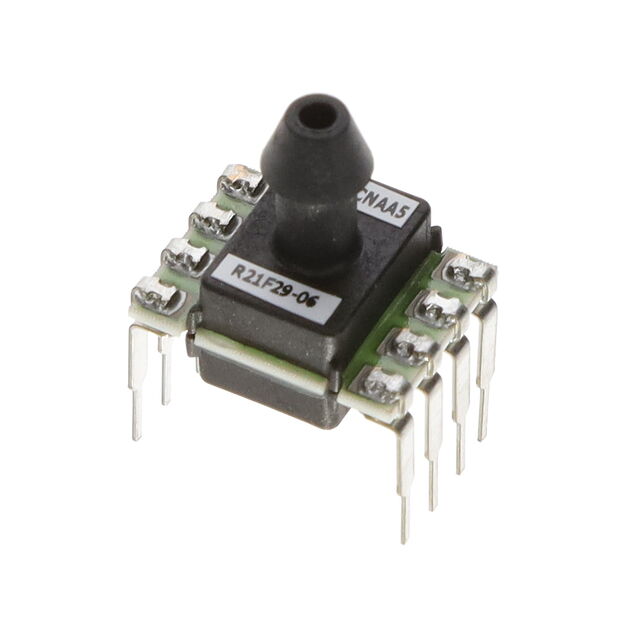

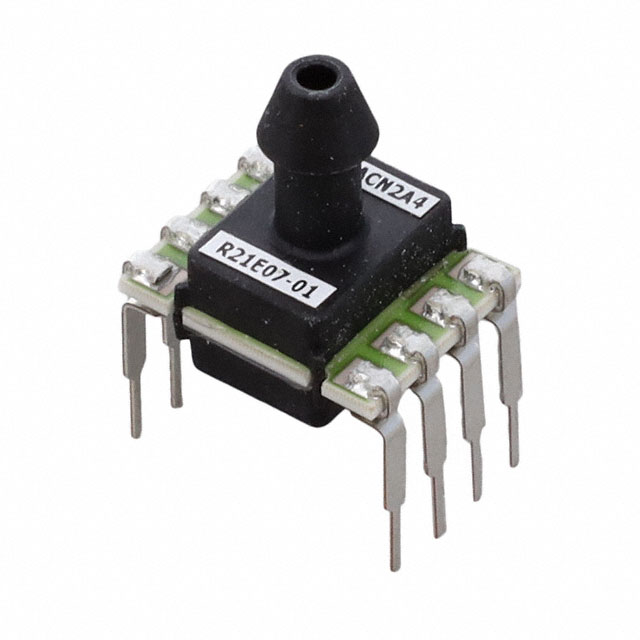

| Part Number | ELVH-015A-HAND-C-N2A4 | ELVH-015A-HAND-C-NAA5 | ELVH-015A-HAND-I-NAA5 | ELVH-015A-HAND-I-NAB5 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 14.94PSIA 0.19" 14BIT | SENSOR 14.94PSIA 0.19" | SENSOR 14.94PSIA 0.19" | SENSOR 14.94PSIA 0.19" |
| Series | ELV | ELV | ELV | ELV |
| Packaging | Tray | Tray | Tray | Tray |
