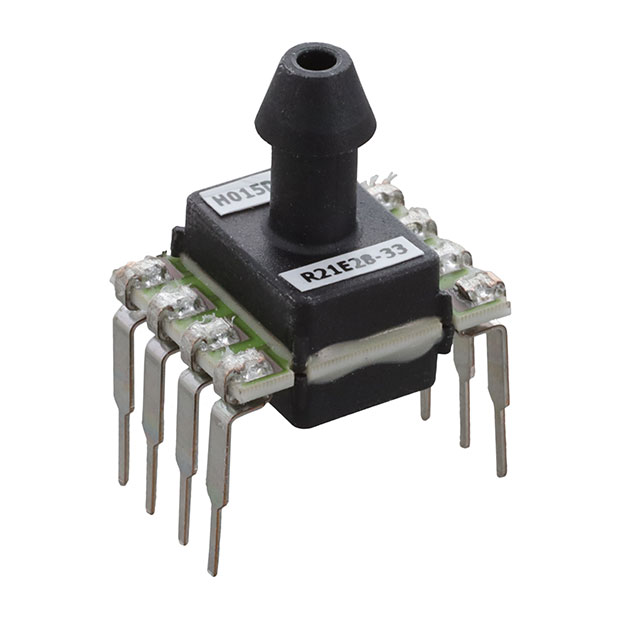

ELVH-015D-HAND-I-NAA5
lmages are for reference only.ELVH-015D-HAND-I-NAA5
SENSOR 14.94PSID 0.19"
Datasheet8-DIP (0.524", 13.30mm), Top Port
16,822 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) Differential Male - 0.19" (4.93mm) Tube 8-DIP (0.524", 13.30mm), Top Port
ELVH-015D-HAND-I-NAA5
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | ELV |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Base Product Number | ELVH-015D |
| Applications | - |
| Pressure Type | Differential |
| Operating Pressure | -1.45PSI ~ 14.94PSI (-10kPa ~ 103kPa) |
| Output Type | Analog Voltage |
| Output | - |
| Accuracy | ±0.25% |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Features | Temperature Compensated |
| Termination Style | PC Pin |
| Maximum Pressure | 30.02PSI (207kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ELVH-015D-HAND-C-P2A4 | ELVH-015D-HRNJ-C-NSA4 | ELVH-015D-HRNJ-C-NSA4 | ELVH-015D-HRRD-C-NAA4 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SENSOR 14.94PSID 0.19" 14BIT | SENSOR 14.94PSID 0.06" 14BIT | SENSOR 14.94PSID 0.06" 14BIT | SENSOR 14.94PSID 0.06" 8DIP |
| Series | ELV | ELV | ELV | ELV |
| Packaging | Tray | Tray | Tray | Tray |
