Product CatalogPart Number
EM258521V
Manufacturer
Eaton - Electronics DivisionDescription
EUROMAG EM2585 SERIES 21 POLE
Datasheet
DatasheetPackage
-
In Stock
51,161 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EM258521V
EM258521V
lmages are for reference only.Payment Methods
Delivery Services
21 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Quick Inquiry
EM258521V
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | Eaton - Electronics Division |
| Series | Euro-Mag EM2585 |
| Packaging | Bulk |
| RoHS Status | |
| Number of Levels | 1 |
| Positions Per Level | 21 |
| Pitch | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board |
| Current | 16 A |
| Voltage | 300 V |
| Wire Gauge | 12-26 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) |
| Color | Green |
| Operating Temperature | -40°C ~ 105°C |
| Housing Material | Thermoplastic |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | - |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Screw Thread | M2.6 |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
|
|
|
| Part Number | EM258521H | EM258502H | EM258502V | EM258503H |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | EUROMAG EM2585 SERIES 21 POLE | EUROMAG EM2585 SERIES 02 POLE | TERM BLK 2POS SIDE ENTRY 5MM PCB | TERM BLK 3POS TOP ENTRY 5MM PCB |
| Series | Euro-Mag EM2585 | Euro-Mag EM2585 | Euro-Mag EM2585 | Euro-Mag EM2585 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
EM258502H
Eaton - Electronics Division
EM258502V
Eaton - Electronics Division
EM258503H
Eaton - Electronics Division

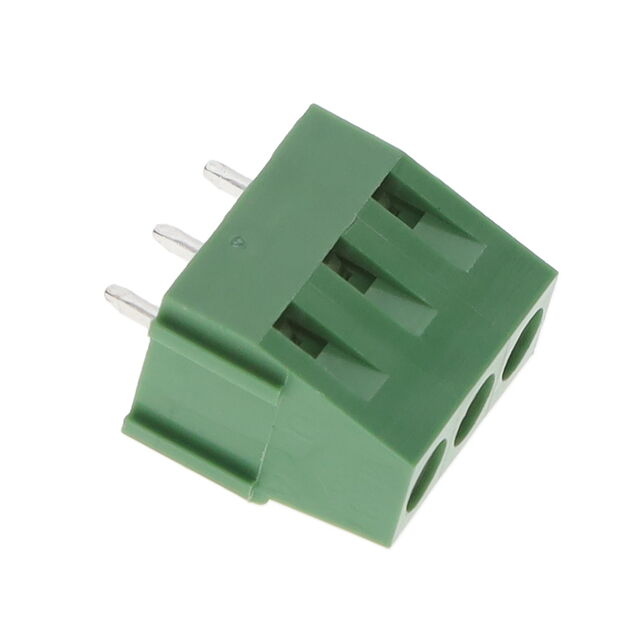

EM258503V
Eaton - Electronics Division
EM258504V
Eaton - Electronics Division
EM258505H
Eaton - Electronics Division

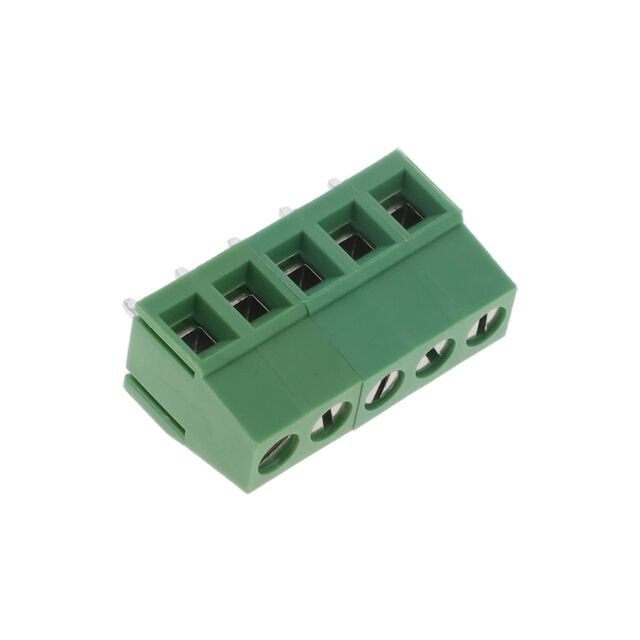

EM258505V
Eaton - Electronics Division
EM258506H
Eaton - Electronics Division
EM258506V
Eaton - Electronics Division

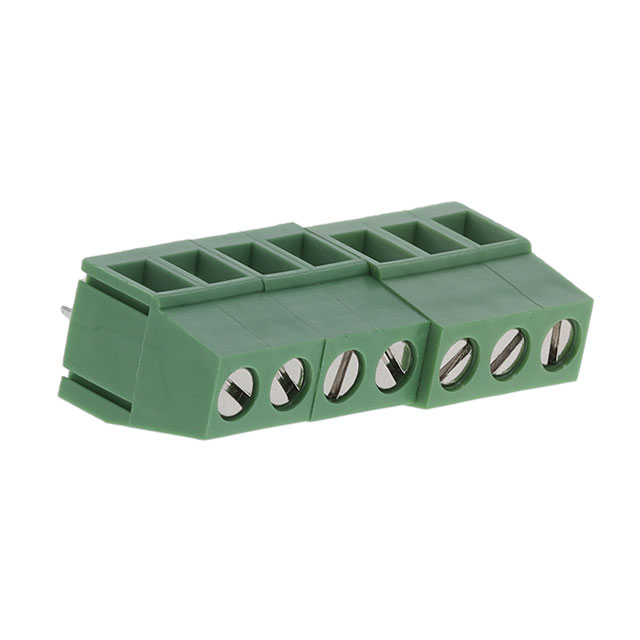

EM258507V
Eaton - Electronics Division

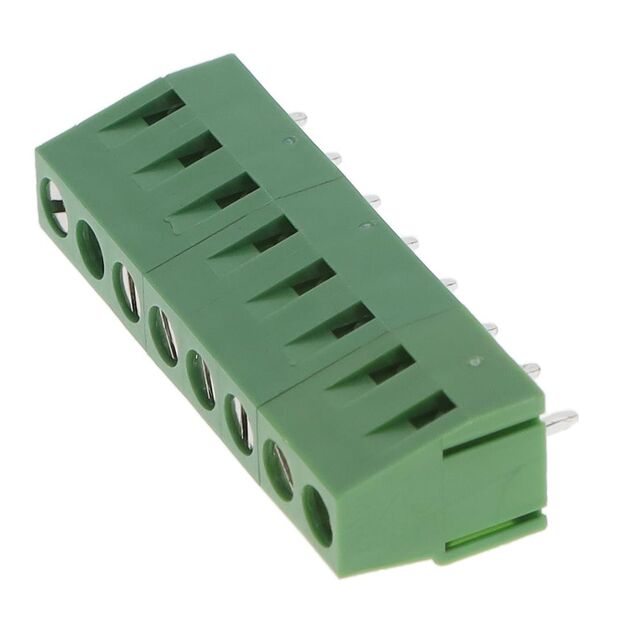

EM258508V
Eaton - Electronics Division
EM258509H
Eaton - Electronics Division
EM258511H
Eaton - Electronics Division
EM258511V
Eaton - Electronics Division
EM258512H
Eaton - Electronics Division

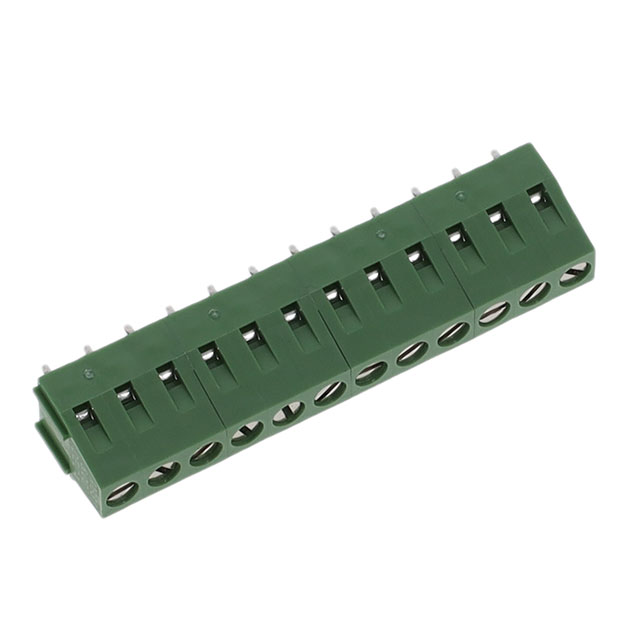

EM258512V
