EMDR501W393M1GF001E
lmages are for reference only.EMDR501W393M1GF001E
CAP CER 0.039UF 500V X7R 1812
Datasheet1812 (4532 Metric)
40,401 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.039 µF ±20% 500V Ceramic Capacitor X7R 1812 (4532 Metric)
EMDR501W393M1GF001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | X2Y® Polyterm® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.039 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL (X2Y), Soft Termination |
| Ratings | - |
| Applications | Bypass, Decoupling, Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.174" L x 0.125" W (4.42mm x 3.18mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.090" (2.29mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

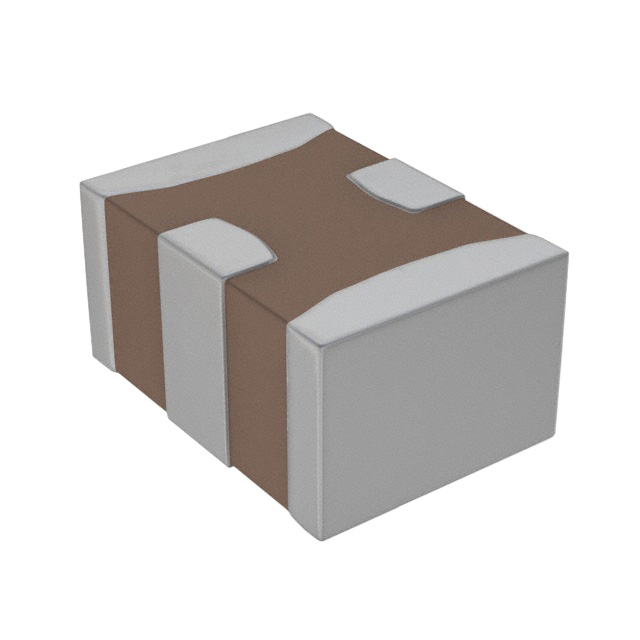

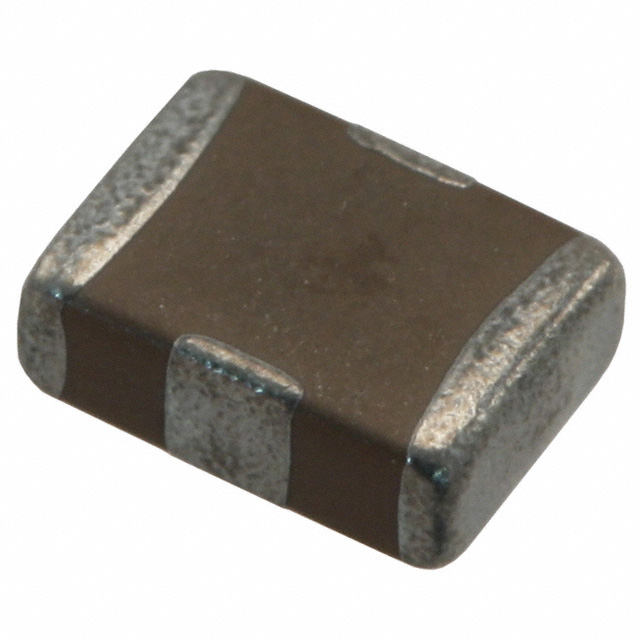

| Part Number | EMDR101W474M1GF001E | EMDR101W474M1GV001E | EMDR500W474M1GV001E | C0402C111G5TACTU |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | KEMET |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.47UF 100V X7R 1812 | CAP CER 0.47UF 100V X7R 1812 | CAP CER 0.47UF 50V X7R 1812 | CAP CER 0402 110PF 50VDC X8G |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | KEMET |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
