EMIF02-SPK01F2
lmages are for reference only.EMIF02-SPK01F2
FILTER RC(PI) 10 OHM/200PF SMD
Datasheet5-WFBGA, FCBGA
61,140 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 10Ohms, C = 200pF 5-WFBGA, FCBGA
EMIF02-SPK01F2
| Category | Filters - EMI-RFI Filters LC-RC Networks - |
| Manufacturer | STMicroelectronics |
| Series | IPAD™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Center / Cutoff Frequency | - |
| Attenuation Value | - |
| Resistance - Channel (Ohms) | 10 |
| Current | - |
| Values | R = 10Ohms, C = 200pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-WFBGA, FCBGA |
| Size / Dimension | 0.058" L x 0.042" W (1.47mm x 1.07mm) |
| Height | 0.026" (0.65mm) |
| Number of Channels | 2 |
| Base Product Number | EMIF02 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |

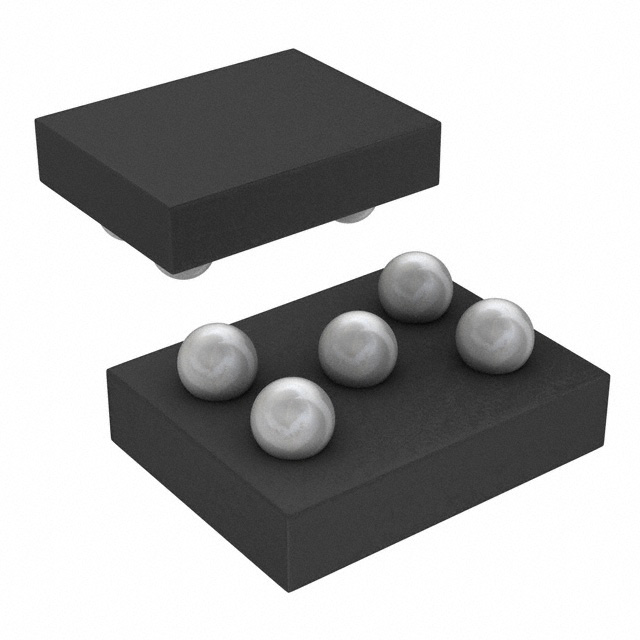

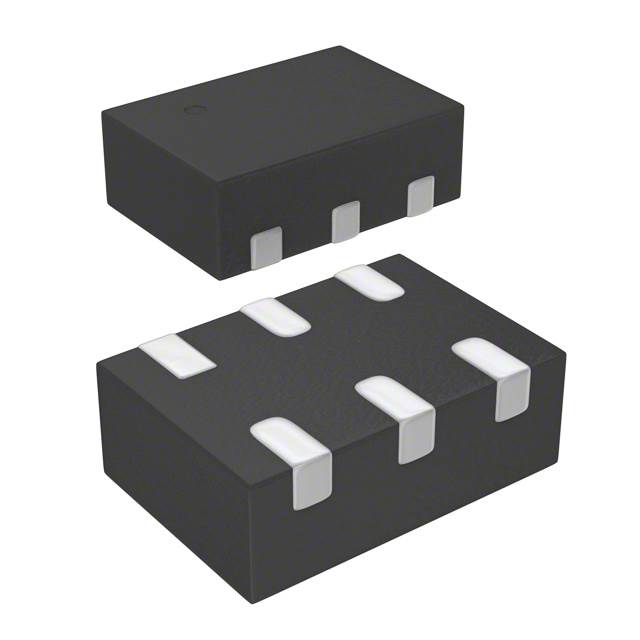

| Part Number | EMIF02-SPK01F2 | EMIF02-SPK01M6 | EMIF02-SPK01M6 | EMIF02-SPK02F2 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FILTER RC(PI) 10 OHM/200PF SMD | FILTER RC(PI) 10 OHM/220PF SMD | FILTER RC(PI) 10 OHM/220PF SMD | IC EMI FILTER ESD PROT SMD |
| Series | IPAD™ | IPAD™ | IPAD™ | EMIF |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
