Product CatalogPart Number
EPAG421ELL560MU30S
Manufacturer
Chemi-ConDescription
CAP ALUM 56UF 20% 420V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
54,707 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EPAG421ELL560MU30S
EPAG421ELL560MU30S
lmages are for reference only.Payment Methods
Delivery Services
56 µF 420 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Quick Inquiry
EPAG421ELL560MU30S
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | PAG |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 430 mA @ 120 Hz |
| Ripple Current @ High Frequency | 774 mA @ 100 kHz |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.571" Dia (14.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | EPAG421ELL101ML40S | EPAG421ELL101MM30S | EPAG421ELL121MM35S | EPAG421ELL151MM40S |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 100UF 20% 420V RADIAL | CAP ALUM 100UF 20% 420V RADIAL | CAP ALUM 120UF 20% 420V RADIAL | CAP ALUM 150UF 20% 420V RADIAL |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
EPAG401ELL101ML30S
Chemi-Con
EPAG401ELL101MU40S
Chemi-Con
EPAG401ELL121ML35S
Chemi-Con
EPAG401ELL121MM30S
Chemi-Con
EPAG401ELL151ML40S
Chemi-Con
EPAG401ELL151MM35S
Chemi-Con
EPAG401ELL181MM40S
Chemi-Con

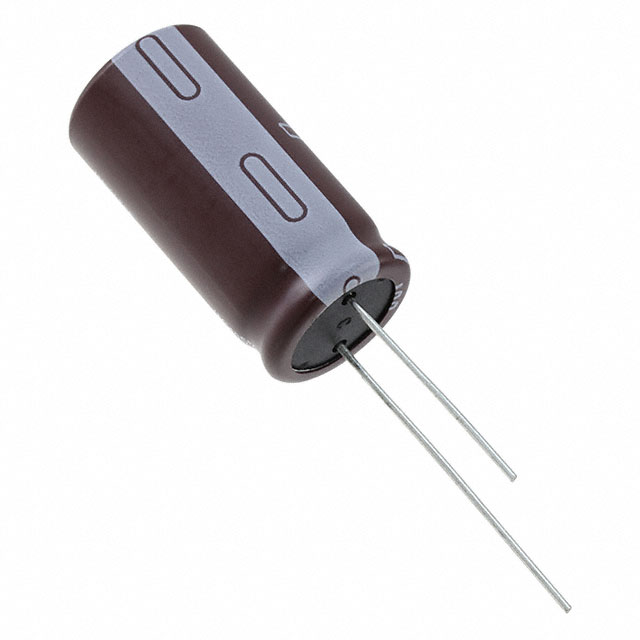

EPAG401ELL221MM45S
