Product CatalogPart Number
EPM7160SQC160-10N
Manufacturer
IntelDescription
IC CPLD 160MC 10NS 160QFP
Datasheet
DatasheetPackage
160-BQFP
In Stock
37,540 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EPM7160SQC160-10N
EPM7160SQC160-10N
lmages are for reference only.Payment Methods
Delivery Services
Quick Inquiry
EPM7160SQC160-10N
Specifications
| Category | Integrated Circuits (ICs) - Embedded - CPLDs Complex Programmable Logic Devices |
| Manufacturer | Intel |
| Series | MAX® 7000S |
| Packaging | Tray |
| RoHS Status | |
| Programmable Type | In System Programmable |
| Delay Time tpd(1) Max | 10 ns |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
| Number of Logic Elements/Blocks | 10 |
| Number of Macrocells | 160 |
| Number of Gates | 3200 |
| Number of I/O | 104 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 160-BQFP |
| Supplier Device Package | 160-PQFP (28x28) |
| Base Product Number | EPM7160 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

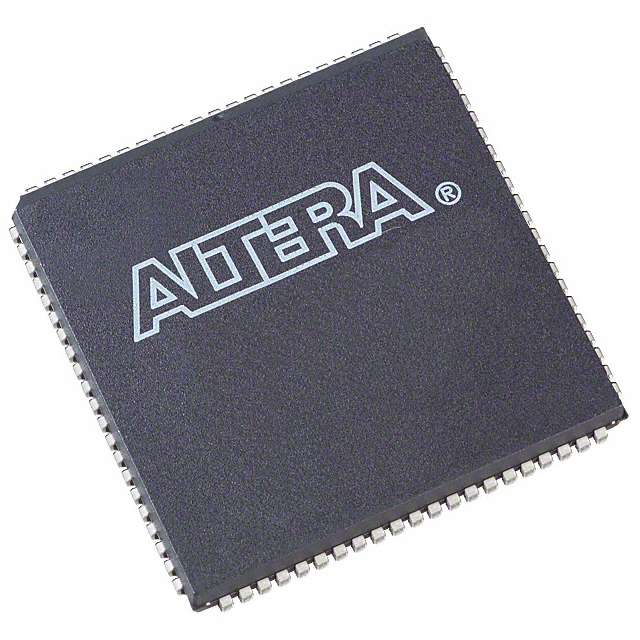

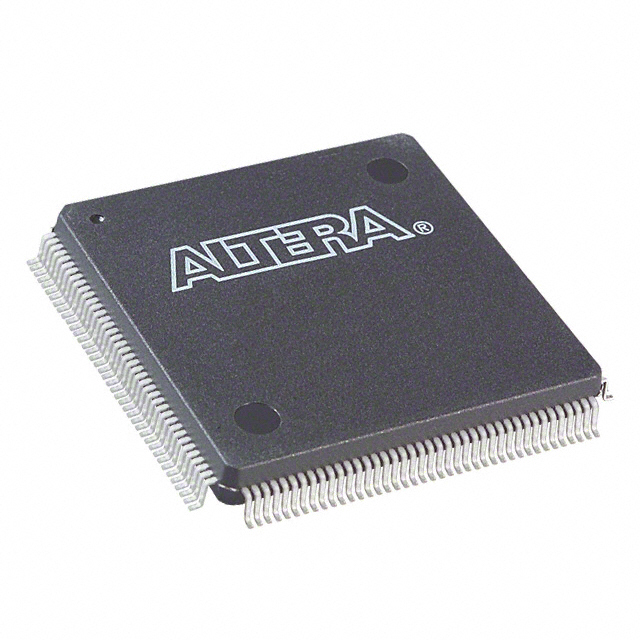

| Part Number | EPM7160SQC160-10 | EPM7160SQC160-6 | EPM7160ELC84-10 | EPM7160ELC84-15 |
| Manufacturer | Intel | Intel | Intel | Intel |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | IC CPLD 160MC 10NS 160QFP | IC CPLD 160MC 6NS 160QFP | IC CPLD 160MC 10NS 84PLCC | IC CPLD 160MC 15NS 84PLCC |
| Series | MAX® 7000S | MAX® 7000S | MAX® 7000 | MAX® 7000 |
| Packaging | Tray | Tray | Tube | Tube |
