Product CatalogPart Number
ER804_T0_00001
Manufacturer
Panjit International Inc.Description
TO-220AC, SUPER
Datasheet
DatasheetPackage
TO-220-2
In Stock
43,709 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ER804_T0_00001
ER804_T0_00001
lmages are for reference only.Payment Methods
Delivery Services
Diode 400 V 8A Through Hole TO-220AC
Quick Inquiry
ER804_T0_00001
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 400 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | ER804 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

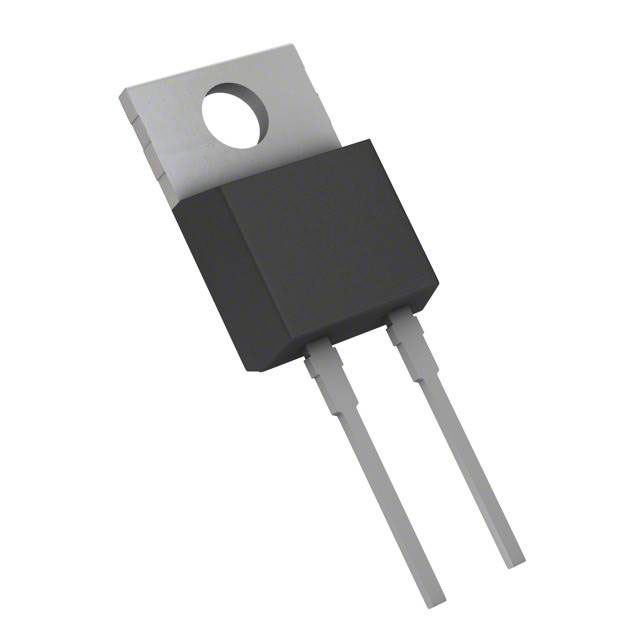

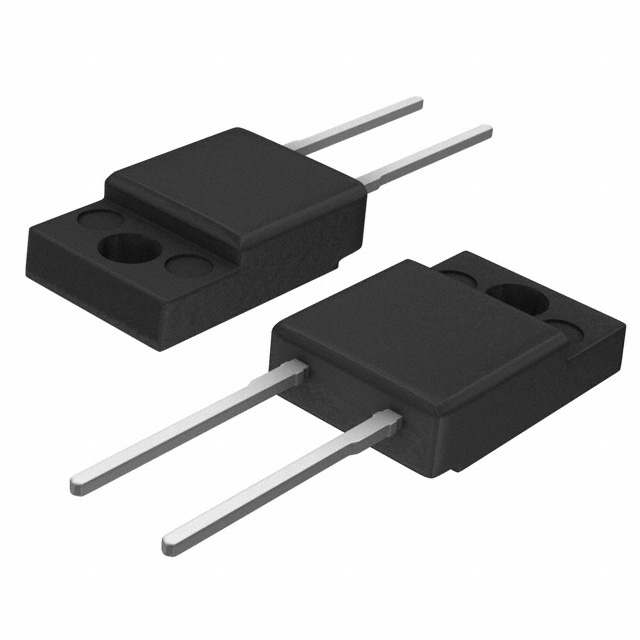

| Part Number | ER800_T0_00001 | ER801A_T0_00001 | ER801_T0_00001 | ER802F_T0_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SUPERFAST RECOVERY RECTIFIERS | SUPERFAST RECOVERY RECTIFIERS | SUPERFAST RECOVERY RECTIFIERS | ITO-220AC, SUPER |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
