Product CatalogPart Number
ERA-S39J5R6V
Manufacturer
Panasonic Electronic ComponentsDescription
RES TEMP SENS 5.6 OHM 5% 1/10W
Datasheet
DatasheetPackage
-
In Stock
72,303 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ERA-S39J5R6V
ERA-S39J5R6V

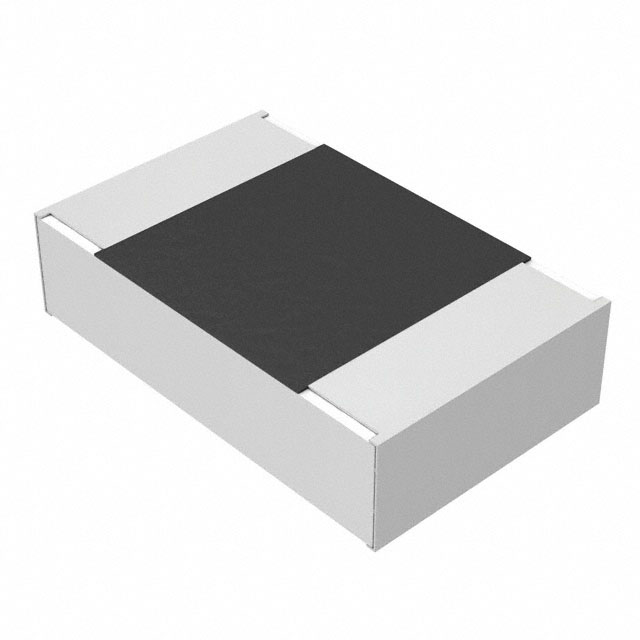

lmages are for reference only.Payment Methods
Delivery Services
5.6 Ohms ±5% 0.1W, 1/10W Temperature Sensitive Specialized Resistor Metal Film 3900ppm/°C Surface Mount
Quick Inquiry
ERA-S39J5R6V
Specifications
| Category | Resistors - Specialized Resistors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ERAS |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Temperature Sensitive |
| Applications | Temperature Correction Circuits |
| Composition | Metal Film |
| Resistance | 5.6 Ohms |
| Tolerance | ±5% |
| Power (Watts) | 0.1W, 1/10W |
| Temperature Coefficient | 3900ppm/°C |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Base Product Number | ERA-S39 |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | ERA-S39J5R6V | ERA-S33J101V | ERA-S33J101V | ERA-S33J102V |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | RES TEMP SENS 5.6 OHM 5% 1/10W | RES TEMP SENS 100 OHM 5% 1/10W | RES TEMP SENS 100 OHM 5% 1/10W | RES TEMP SENS 1K OHM 5% 1/10W |
| Series | ERAS | ERAS | ERAS | ERAS |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
