ERHA651LGC102MDA0M
lmages are for reference only.Payment Methods
Delivery Services
1000 µF 650 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
ERHA651LGC102MDA0M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | RHA |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 650 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.82 A @ 3 kHz |
| Lead Spacing | 1.102" (28.00mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 3.937" (100.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
|
 |
|

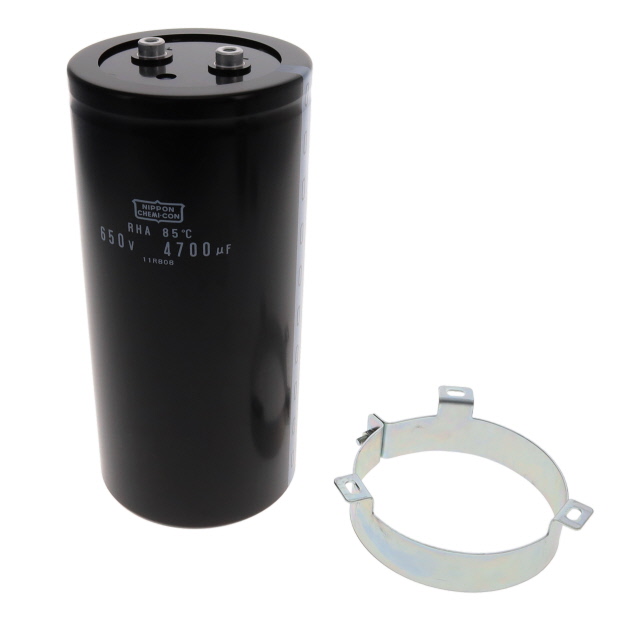

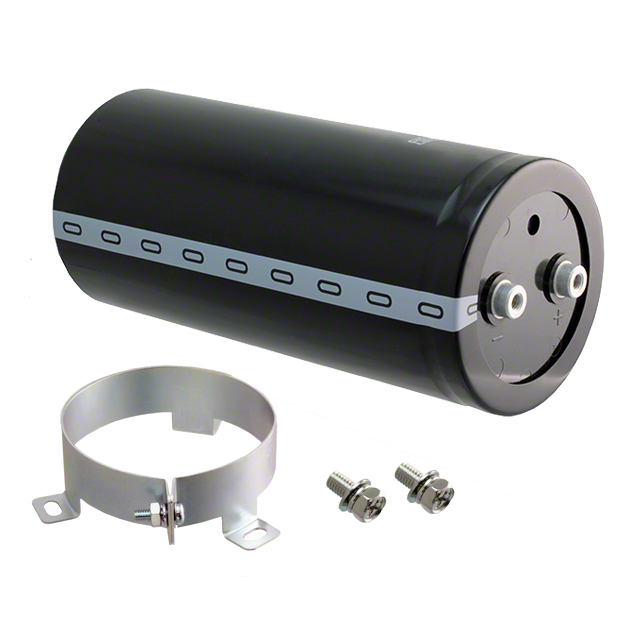

| Part Number | ERHA651LGC102MDA0U | ERHA651LGC122MDB0U | ERHA651LGC332MEH0M | ERHA651LGC472MFK0M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 1000UF 20% 650V SCREW | CAP ALUM 1200UF 20% 650V SCREW | CAP ALUM 3300UF 20% 650V SCREW | CAP ALUM 4700UF 20% 650V SCREW |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Tray | Bulk | Bulk | Bulk |
