5.6 mF 575 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
ERHB5G1LGC562MFE5M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | RHB |
| Packaging | Bulk |
| RoHS Status | |
| Capacitance | 5.6 mF |
| Tolerance | ±20% |
| Voltage - Rated | 575 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 17.78 A @ 3 kHz |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 5.709" (145.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
|

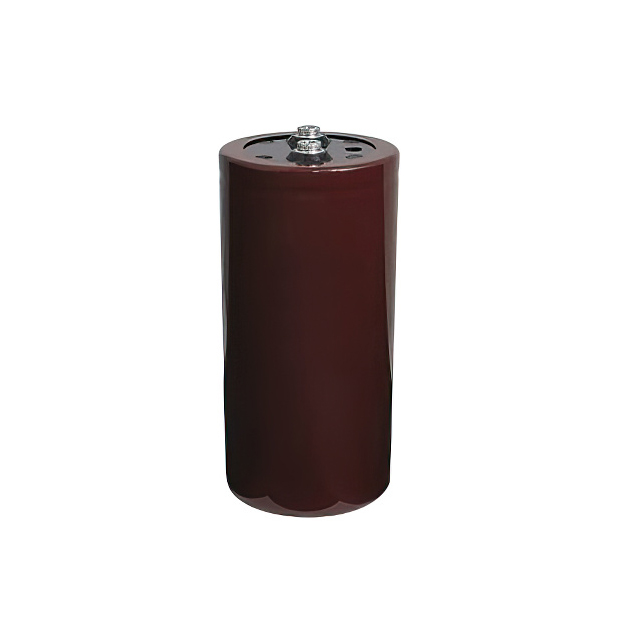

| Part Number | ERHB5G1LGC102MD70M | ERHB5G1LGC122MD80M | ERHB5G1LGC152MD95M | ERHB5G1LGC152ME70M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | ||||
| Description | CAP ALUM 1MF 20% 575V SCREW CHAS | CAP ALUM 1.2MF 20% 575V SCREW CH | CAP ALUM 1.5MF 20% 575V SCREW CH | CAP ALUM 1.5MF 20% 575V SCREW CH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
