ERHB701LGC222MEF5U
lmages are for reference only.Payment Methods
Delivery Services
2200 µF 700 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 85°C
ERHB701LGC222MEF5U
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | RHB |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 700 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.32 A @ 3 kHz |
| Lead Spacing | 1.240" (31.50mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 6.260" (159.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
|

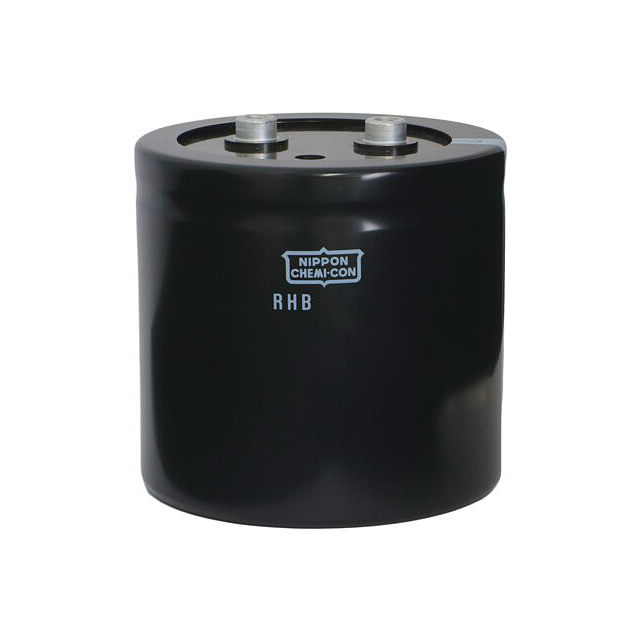

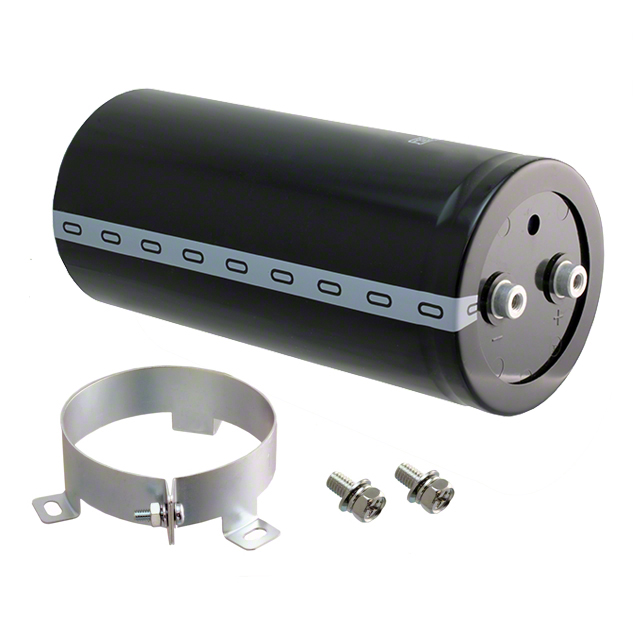

| Part Number | ERHB701LGC222MEF5M | ERHB701LGC222MFB5M | ERHB701LGC222MFB5U | ERHB701LGC102MDB5M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | |||
| Description | CAP ALUM 2.2MF 20% 700V SCREW CH | CAP ALUM 2.2MF 20% 700V SCREW CH | CAP ALUM 2200UF 20% 700V SCREW | CAP ALUM 1MF 20% 700V SCREW CHAS |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
