Product CatalogPart Number
ESD3V3L-TP
Manufacturer
Micro Commercial CoDescription
Interface
Datasheet
DatasheetPackage
0402 (1006 Metric)
In Stock
85,860 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ESD3V3L-TP
ESD3V3L-TP
lmages are for reference only.Payment Methods
Delivery Services
15V Clamp 20A (8/20µs) Ipp Tvs Diode Surface Mount 2-DFN1006
Quick Inquiry
ESD3V3L-TP
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 4.2V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 20A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 250pF @ 1MHz (Max) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | 2-DFN1006 |
| Base Product Number | ESD3V3 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

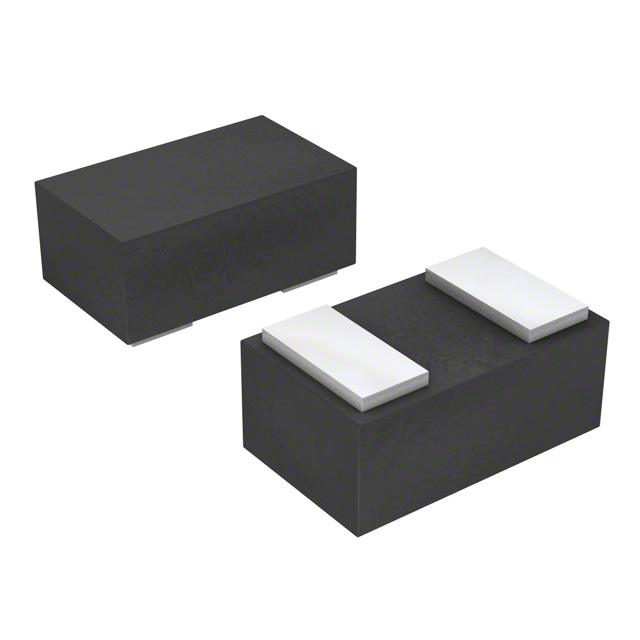

| Part Number | ESD3V3LB-TP | ESD300B102LRHE6327XTSA1 | ESD307U102NE6327XTSA1 | ESD311U102NE6327XTSA1 |
| Manufacturer | Micro Commercial Co | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | ESD PROTECTION DEVICE | TVS DIODE 3.3VWM 10.5V TSLP-2-17 | TVS DIODE 10VWM 29VC TSNP-2-2 | TVS DIODE 15VWM 35VC TSNP-2-2 |
| Series | Micro Commercial Co | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
