ESDALD08BCX
lmages are for reference only.ESDALD08BCX
ESDALD08BC/SOD323/REEL 7" Q1/T1
DatasheetSC-76, SOD-323
26,034 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25V Clamp 15A Ipp Tvs Diode Surface Mount SOD-323
ESDALD08BCX
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | WeEn Semiconductors |
| Series | ESDALDxxBC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 8V |
| Voltage - Breakdown (Min) | 8.5V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse (10/1000µs) | 15A |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.8pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | ESDALD08 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

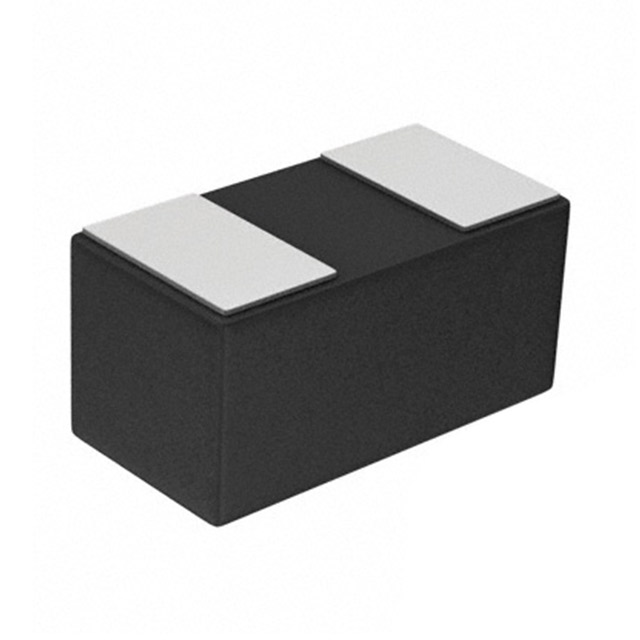

| Part Number | ESDALC12-1T2 | ESDALC14-1BF4 | ESDALC14-1BU2 | ESDALC14V2-1U2 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 10VWM 20VC SOD882 | TVS DIODE 5VWM 18VC 0201 | TVS DIODE 12VWM 18VC ST0201 | TVS DIODE 3VWM ST0201 |
| Series | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
