ESDHD24UCX

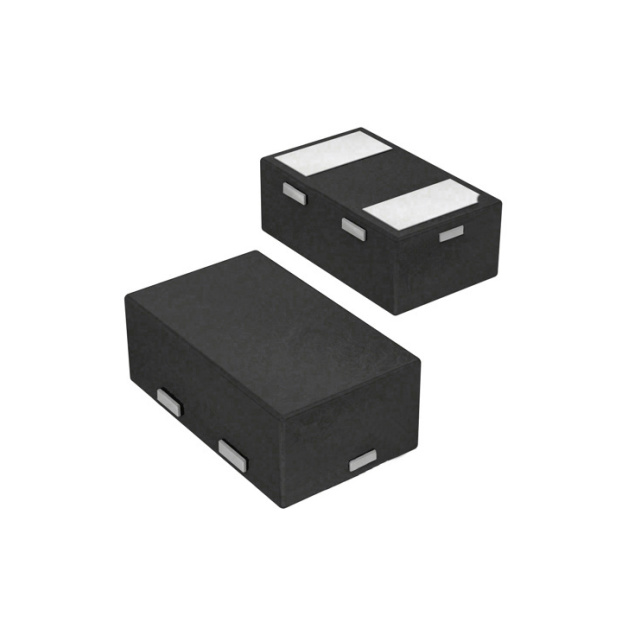

lmages are for reference only.ESDHD24UCX
ESDHD24UC/SOD323/REEL 7" Q1/T1 *
DatasheetSC-76, SOD-323
92,459 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
55V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
ESDHD24UCX
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | WeEn Semiconductors |
| Series | ESDHDxxUC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 26V |
| Voltage - Clamping (Max) @ Ipp | 55V |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 80pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | ESDHD24BCX | ESDHD24BFX | ESDHD24UFX | ESDH12VD1-TP |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | ESDHD24BC/SOD323/REEL 7" Q1/T1 * | ESDHD24BF/DFN1006/REEL 7" Q1/T1 | ESDHD24UF/DFN1006/REEL 7" Q1/T1 | TVS DIODE 12VWM 35VC SOD123 |
| Series | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | Micro Commercial Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
