ESDSBSLC5V0AE2-TP

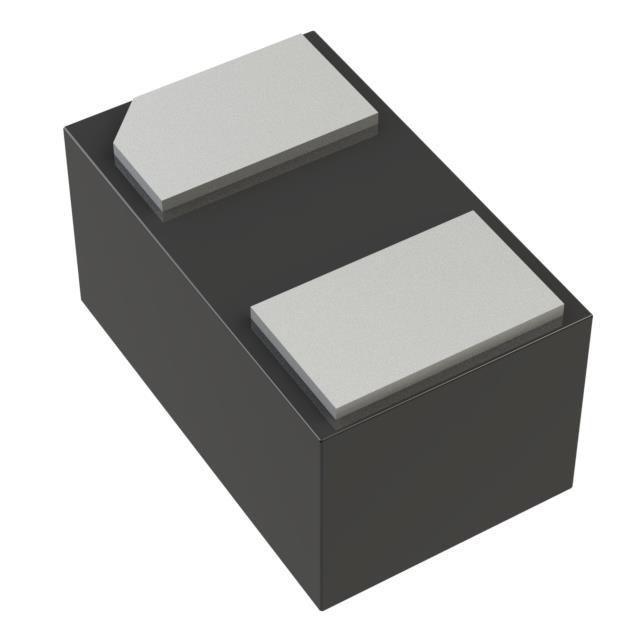

lmages are for reference only.ESDSBSLC5V0AE2-TP
TVS DIODE 5VWM 10VC 0201
Datasheet0201 (0603 Metric)
14,492 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10V (Typ) Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0201-A
ESDSBSLC5V0AE2-TP
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | 44W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.35pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201-A |
| Base Product Number | ESDSBSLC5 |
| Unidirectional Channels | 2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ESDSBSLC5V0D3B-TP | ESDSBSLC5V0L-TP | ESDSBSLC18VAE2-TP | ESDSBSLC18VLB-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ||||
| Description | TVS DIODE 5VWM 11VC SOD-323 | Interface | TVS DIODE 18VWM 10VC 0201 | TVS DIODE 18.5VWM 10VC 2DFN |
| Series | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Bulk |
