Product CatalogPart Number
ESE-24SH6
Manufacturer
Panasonic Electronic ComponentsDescription
SWITCH DETECTOR SPDT 0.01A 5V
Datasheet
DatasheetPackage
-
In Stock
98,648 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ESE-24SH6
ESE-24SH6
lmages are for reference only.Payment Methods
Delivery Services
Switch SPDT Through Hole, Right Angle
Quick Inquiry
ESE-24SH6
Specifications
| Category | Switches - Limit Switches - |
| Manufacturer | Panasonic Electronic Components |
| Series | ESE24 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | ESE-24 |
| Circuit | SPDT |
| Switch Function | Mom-Off-Mom |
| Current Rating (Amps) | 10mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 5 V |
| Actuator Type | Angled Toggle (Detector) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Ingress Protection | - |
| Electrical Life | 50,000 Cycles |
| Mechanical Life | 50,000 Cycles |
| Features | - |
| Operating Force | 35gf |
| Release Force | - |
| Operating Position | 0.179" (4.55mm) |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -10°C ~ 70°C |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

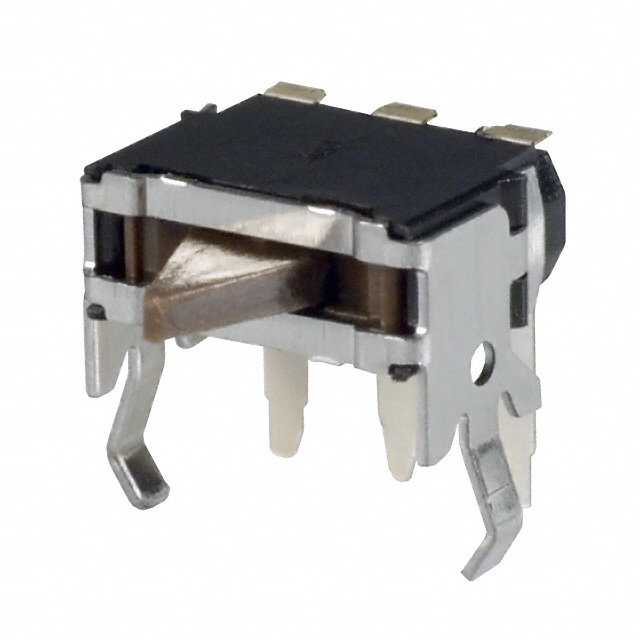

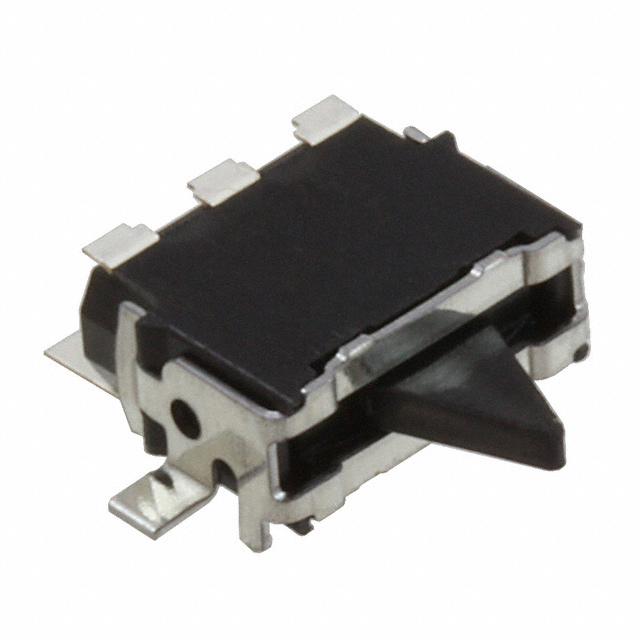

| Part Number | ESE-24SH1 | ESE-24CMH1T | ESE-24CMH6T | ESE-24CMH9T |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH DETECTOR SPDT 0.01A 5V | SWITCH DETECTOR SPDT 0.01A 5V | SWITCH DETECTOR SPDT 0.01A 5V | SWITCH DETECTOR SPDT 0.01A 5V |
| Series | ESE24 | ESE24 | ESE24 | ESE24 |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
