ESR18EZPF2371

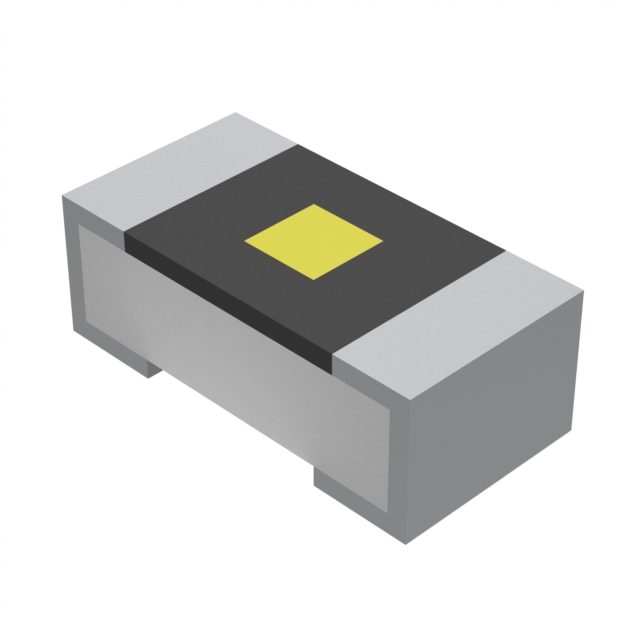

lmages are for reference only.ESR18EZPF2371
RES 2.37K OHM 1% 1/2W 1206
Datasheet1206 (3216 Metric)
69,463 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.37 kOhms ±1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
ESR18EZPF2371
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Rohm Semiconductor |
| Series | ESR |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 2.37 kOhms |
| Tolerance | ±1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Pulse Withstanding |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | ESR18EZPF2370 | ESR18EZPF2372 | ESR18EZPF2373 | ESR18EZPF2000 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES 237 OHM 1% 3/4W 1206 | RES 23.7K OHM 1% 1/2W 1206 | RES 237K OHM 1% 1/2W 1206 | RES 200 OHM 1% 3/4W 1206 |
| Series | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
