ESTW025A0F41-HZ

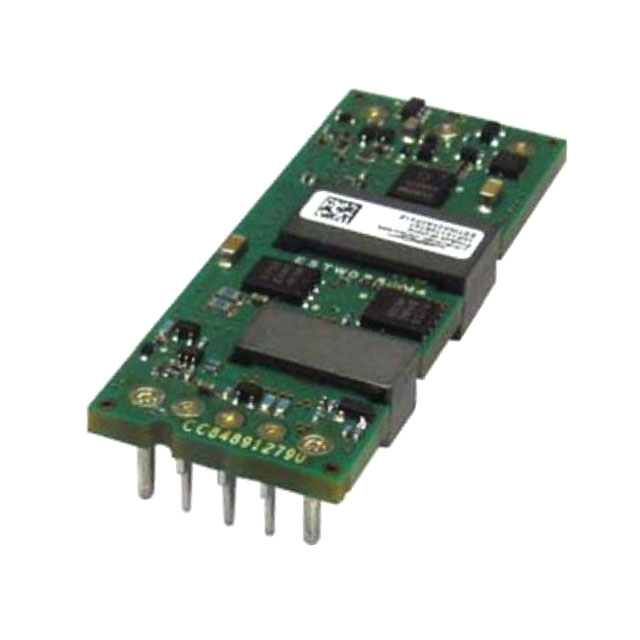

lmages are for reference only.ESTW025A0F41-HZ
DC DC CONVERTER 3.3V 83W
Datasheet8-DIP Module, 1/8 Brick
56,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
ESTW025A0F41-HZ
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | STINGRAY™ ESTW025A0F |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 83 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.28" L x 0.90" W x 0.48" H (57.9mm x 22.8mm x 12.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | ESTW025 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
|
 |
| Part Number | ESTW025A0F41-SZ | ESTW025A0F41Z | ESTW025A0F41Z | ESTW025A0F4Z |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DC DC CONVERTER 3.3V 83W | DC DC CONVERTER 3.3V 83W | DC DC CONVERTER 3.3V 83W | DC DC CONVERTER 3.3V 83W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Tray | Tray | Tray |
