ETQ-A17B220

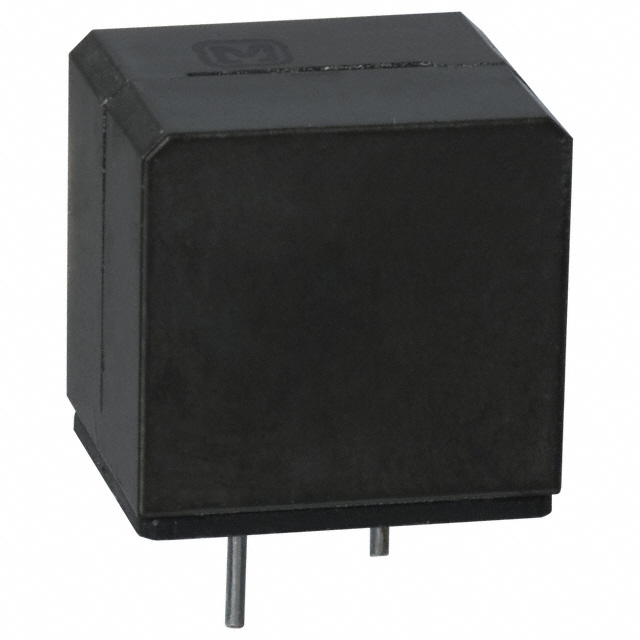

lmages are for reference only.ETQ-A17B220
FIXED IND 22UH 8A 17 MOHM TH
DatasheetRadial, Horizontal - Corner Terminals
88,168 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Drum Core, Wirewound Inductor 8 A 17mOhm Max Radial, Horizontal - Corner Terminals
ETQ-A17B220
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 8 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 17mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.689" L x 0.591" W (17.50mm x 15.00mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Base Product Number | ETQ-A17 |
| Product Attribute | |
|
 |
|
| Part Number | ETQ-A15B220 | ETQ-A15B330 | ETQ-A17B330 | ER1025-73JP |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Delevan |
| RoHS Status | RoHS non-compliant | |||
| Description | FIXED IND 22UH 7A 15 MOHM TH | FIXED IND 33UH 4A 15 MOHM TH | FIXED IND 33UH 6A 17 MOHM TH | FIXED IND 160UH 57MA 17 OHM TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Delevan |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
