Product CatalogPart Number
EV0961500000G
Manufacturer
Amphenol AnytekDescription
TERM BLOCK PLUG 9POS STR 10.16MM
Datasheet
DatasheetPackage
-
In Stock
93,105 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EV0961500000G
EV0961500000G
lmages are for reference only.Payment Methods
Delivery Services
9 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line)
Quick Inquiry
EV0961500000G
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Headers-Plugs and Sockets |
| Manufacturer | Amphenol Anytek |
| Series | EV |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | EV |
| Type | Plug, Female Sockets |
| Number of Positions | 9 |
| Positions Per Level | 9 |
| Number of Levels | 1 |
| Pitch | 0.400" (10.16mm) |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Termination Style | Screw |
| Mounting Type | Free Hanging (In-Line) |
| Current - IEC | 76A |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG | 6-20 AWG |
| Wire Gauge or Range - mm² | 0.5-16mm² |
| Color | Green |
| Operating Temperature | -40°C ~ 115°C |
| Contact Mating Finish | Tin |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Ingress Protection | - |
| Screw Size | M4.5 |
| Torque - Screw | 1.18 Nm (10.4 Lb-In) |
| Wire Strip Length | 13-14mm |
| Contact Material | Copper |
| Housing Material | Thermoplastic |
| Contact Tail Length | - |
| Insulation Height | 1.024" (26.01mm) |
| Current - UL | 55 A |
| Voltage - UL | 300 V |
Parts with Similar Specifications
| Product Attribute | |
|
 |
|

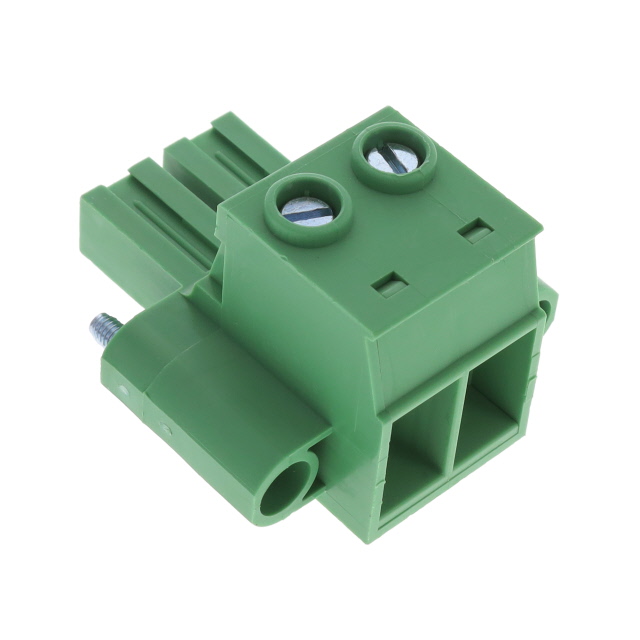

| Part Number | EV0961510000G | EV0261500000G | EV0261510000G | EV0361500000G |
| Manufacturer | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek | Amphenol Anytek |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TERM BLOCK PLUG 9POS STR 10.16MM | TERM BLOCK PLUG 2POS STR 10.16MM | TERM BLOCK PLUG 2POS STR 10.16MM | TERM BLOCK PLUG 3POS STR 10.16MM |
| Series | EV | EV | EV | EV |
| Packaging | Bulk | Bulk | Bulk | Bulk |
