EV200HRANA02
lmages are for reference only.EV200HRANA02
EV200HRANA02=RELAY SPST-NO CUTTH
Datasheet-
51,923 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 28VDC Coil Panel Mount
EV200HRANA02
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine |
| Series | EV200, KILOVAC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Panel Mount |
| Coil Voltage | 28VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 500 A |
| Switching Voltage | 900VDC - Max |
| Load - Max Switching | - |
| Coil Current | - |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Stud |
| Seal Rating | Sealed - Hermetically |
| Coil Insulation | - |
| Must Operate Voltage | - |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Copper |
| Approval Agency | CE, cURus, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | - |
| Base Product Number | 1618396 |
| Product Attribute | |
 |
 |
 |

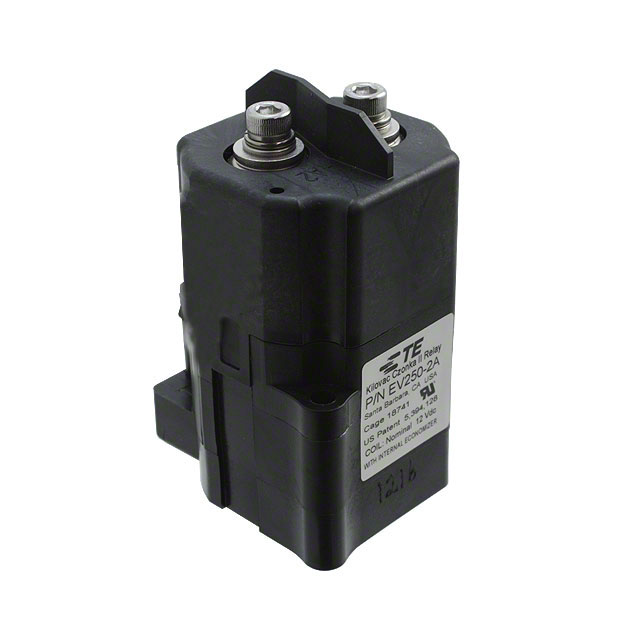

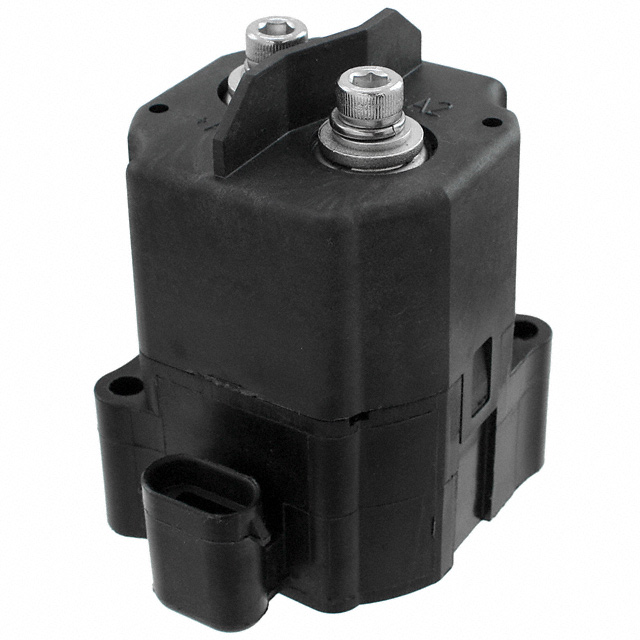

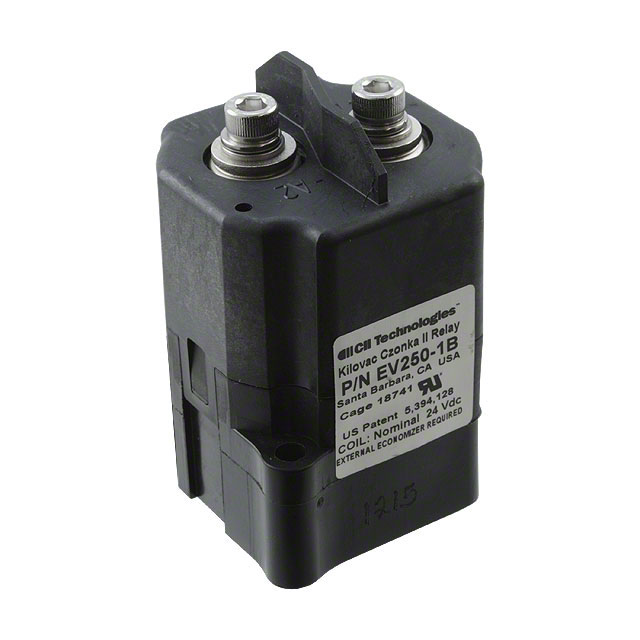

| Part Number | EV200H2ANA | EV250-1A | EV250-1B | EV250-2A |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | EV200H2ANA=RELAY, SPST-NO W/AUX | RELAY GEN PURPOSE SPST 400A 12V | RELAY GEN PURPOSE SPST 400A 24V | RELAY GEN PURPOSE SPST 400A 12V |
| Series | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Packaging | Bulk | Bulk | Bulk | Bulk |
