Product CatalogPart Number
EVQ-P1Y05M
Manufacturer
Panasonic Electronic ComponentsDescription
SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
DatasheetPackage
-
In Stock
78,341 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EVQ-P1Y05M
EVQ-P1Y05M
lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Surface Mount
Quick Inquiry
EVQ-P1Y05M
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | Panasonic Electronic Components |
| Series | EVQP1 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Round Button |
| Mounting Type | Surface Mount |
| Actuator Height off PCB, Vertical | 5.00mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | J Lead |
| Outline | 6.10mm x 6.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 255gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Actuator Material | - |
| Switch Travel | 1.00mm |
| Mechanical Life | 100,000 Cycles |
| Base Product Number | EVQ-P1 |
Parts with Similar Specifications
| Product Attribute |  |  |  |  |
| Part Number | EVQ-11A04M | EVQ-11A05R | EVQ-11A07K | EVQ-11A09K |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH TACTILE SPST-NO 0.02A 15V | SWITCH TACTILE SPST-NO 0.02A 15V | SWITCH TACTILE SPST-NO 0.02A 15V | SWITCH TACTILE SPST-NO 0.02A 15V |
| Series | EVQ11 | EVQ11 | EVQ11 | EVQ11 |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
Customers Also Interested in
Recommended Products
EVQ-P0405M
Panasonic Electronic Components
EVQ-P0D07K
Panasonic Electronic Components
EVQ-P0E07K
Panasonic Electronic Components
EVQ-P0N02B
Panasonic Electronic Components
EVQ-P0P02B
Panasonic Electronic Components
EVQ-P0Q02Q
Panasonic Electronic Components
EVQ-P0S02Q
Panasonic Electronic Components
EVQ-P1905M
Panasonic Electronic Components
EVQ-P1B05M
Panasonic Electronic Components
EVQ-P1D05M
Panasonic Electronic Components
EVQ-P1F05M
Panasonic Electronic Components
EVQ-P1K05M
Panasonic Electronic Components
EVQ-P2002M
Panasonic Electronic Components
EVQ-P2002W
Panasonic Electronic Components
EVQ-P2202M
Panasonic Electronic Components
EVQ-P2202W
Panasonic Electronic Components
EVQ-P2402M
Panasonic Electronic Components

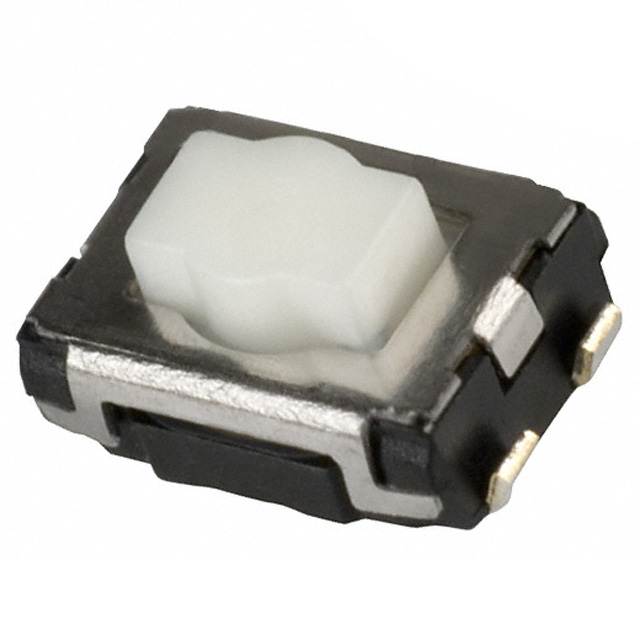

EVQ-P2402W
