EXB250-48S05-RJ

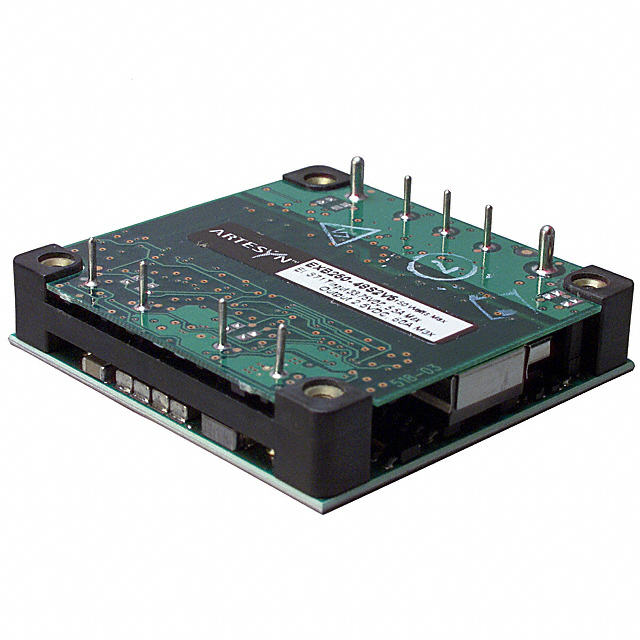

lmages are for reference only.EXB250-48S05-RJ
DC DC CONVERTER 5V 165W
Datasheet9-DIP Module, 1/2 Brick
38,023 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 33A 33V - 75V Input
EXB250-48S05-RJ
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | EXB250 (165W) |
| Packaging | Tray |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 33V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 33A |
| Power (Watts) | 165 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 91.7% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | EXB250 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
|
 |
| Part Number | EXB250-48S12J | EXB250-48S3V3-RJ | 4AA12-P4-25PPM-M-E | PQC30-48-S15-O |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ULTRAVOLT / Advanced Energy | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DC DC CONVERTER 12V 165W | DC DC CONVERTER 3.3V 165W | DC/DC CONVERTER | DC-DC ISOLATED, 30 W, 36~75 VDC |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | ULTRAVOLT / Advanced Energy | CUI Inc. |
| Packaging | Tray | Tray | Bulk | Tray |
