EXL1V0605-1R0-R

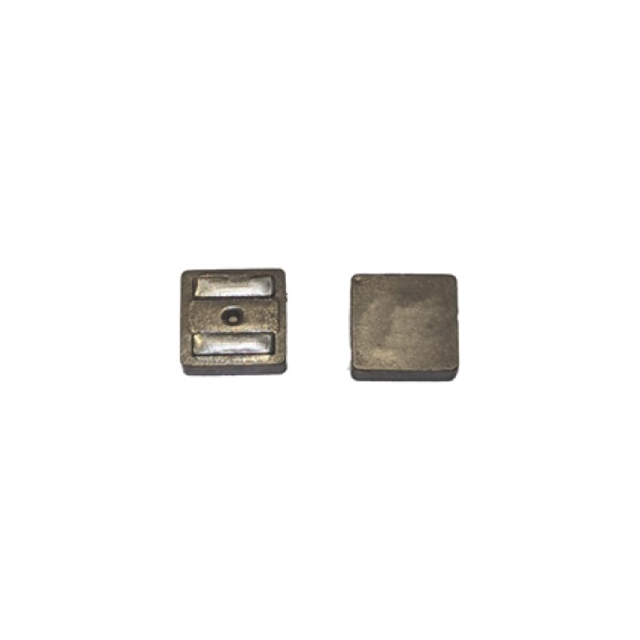

lmages are for reference only.EXL1V0605-1R0-R
FIXED IND 1UH 20A 4.52 MOHM SMD
DatasheetNonstandard
99,311 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Molded Inductor 20 A 4.52mOhm Max Nonstandard
EXL1V0605-1R0-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | EXL1V0605 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Molded |
| Material - Core | Iron Powder |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | 18A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.52mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.272" W (7.20mm x 6.90mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Base Product Number | EXL1V0605 |
| Product Attribute |  |
|
|
 |
| Part Number | EXL1V0605-1R2-R | EXL1V0605-1R2-R | EXL1V0605-1R5-R | EXL1V0605-1R8-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.2UH 18A 5.83MOHM SMD | FIXED IND 1.2UH 18A 5.83MOHM SMD | FIXED IND 1.5UH 17A 6.3MOHM SMD | FIXED IND 1.8UH 16A 7.1MOHM SMD |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
