EXQ60-48D05-3V3-R

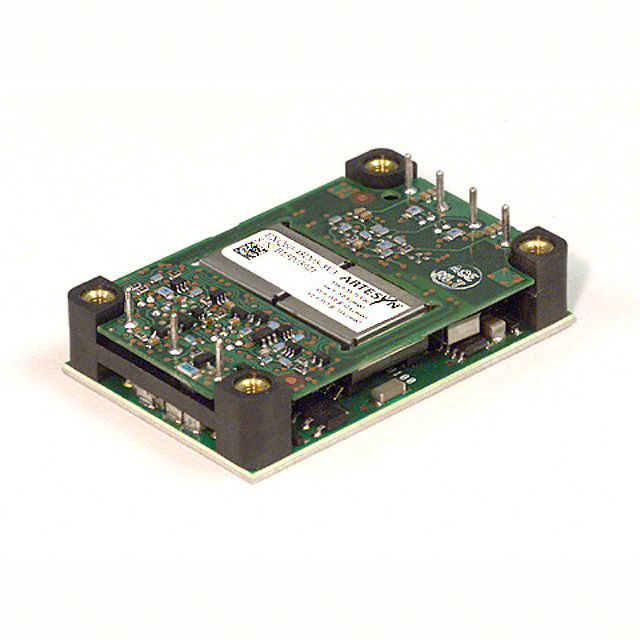

lmages are for reference only.EXQ60-48D05-3V3-R
DC DC CONVERTER 5V 3.3V 60W
Datasheet7-DIP Module, 1/4 Brick
50,186 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V 3.3V 12A, 15A 33V - 75V Input
EXQ60-48D05-3V3-R
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | EXQ60 (60W) |
| Packaging | - |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 33V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12A, 15A |
| Power (Watts) | 60 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 91.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.50" W x 0.50" H (58.4mm x 38.1mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | EXQ60 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
|
|
|
| Part Number | EXQ60-48D05-3V3 | EXQ60-48D05-3V3-R | EX3AV | EX3AV |
| Manufacturer | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | Intel | Intel |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | DC DC CONVERTER 5V 3.3V 60W | DC DC CONVERTER 5V 3.3V 60W | DC DC CONVERTER | DC DC CONVERTER |
| Series | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | Intel | Intel |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
