EZP-V1B505LTB

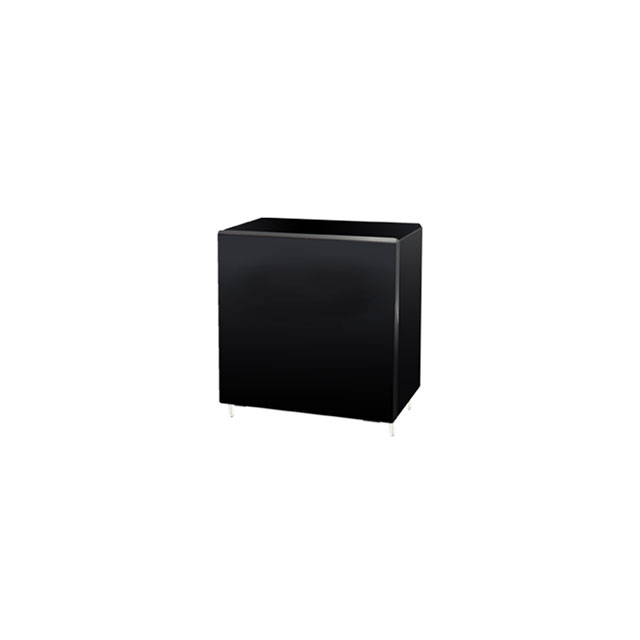

lmages are for reference only.EZP-V1B505LTB
CAP FILM 5UF 10% 1100V RADIAL
DatasheetRadial
38,521 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial
EZP-V1B505LTB
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | EZPV |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1100V (1.1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.614" L x 0.669" W (41.00mm x 17.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | Automotive; DC Link, DC Filtering |
| Ratings | AEC-Q200 |
| Features | Long Life, Low ESR |
| ESR (Equivalent Series Resistance) | 20.4 mOhms |
| Base Product Number | EZP-V1 |
| Product Attribute | |
 |
 |
 |
| Part Number | EZP-V1B505LTB | EZP-V1B505LTT | EZP-V1B106MTB | EZP-V1B106MTT |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 5UF 10% 1100V RADIAL | CAP FILM 5UF 10% 1100V RADIAL | CAP FILM 10UF 10% 1100V RADIAL | CAP FILM 10UF 10% 1100V RADIAL |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
